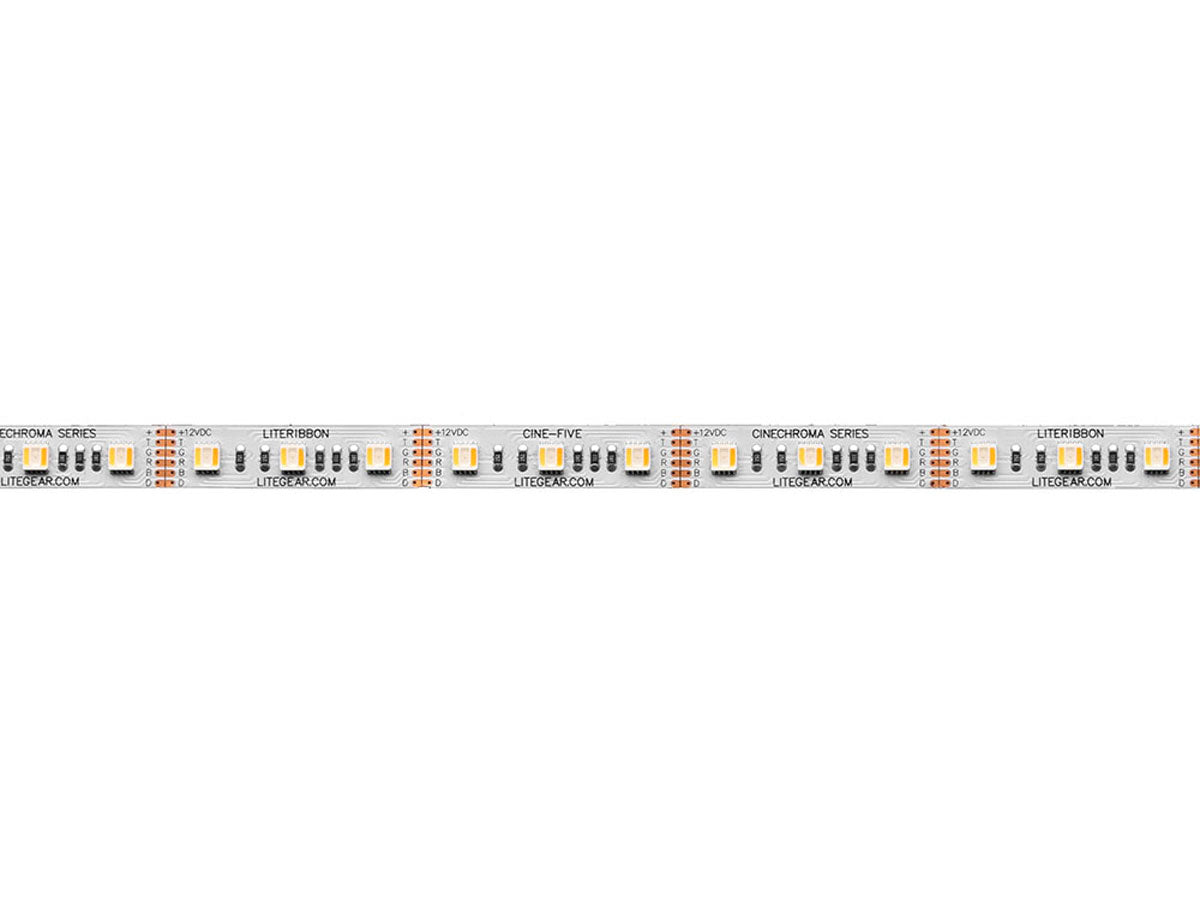

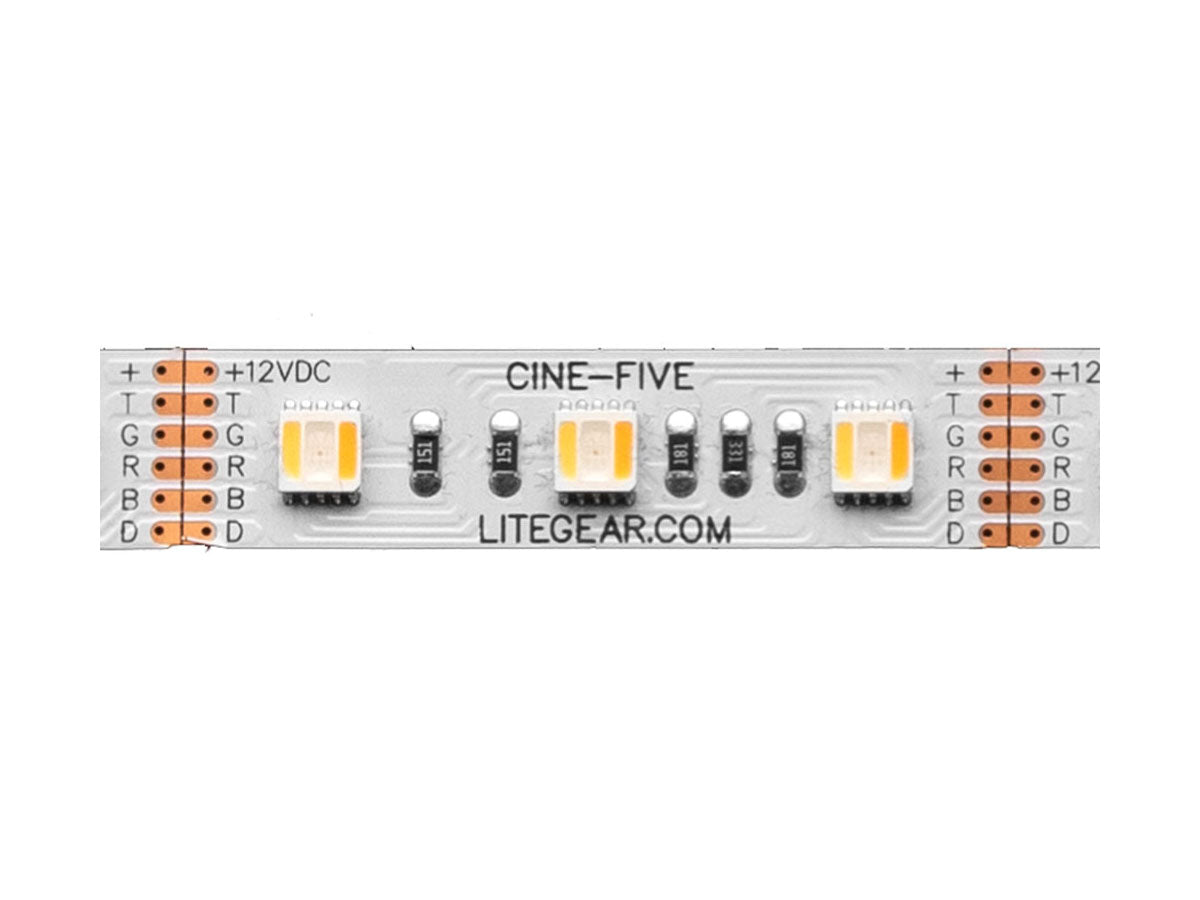

LiteRibbon Chroma, Cine-Five, RGB+HY, 24V, 5 m features cinema-quality 95+ CRI hybrid with the ability to add in crisp RGB color accents. This LiteRibbon variation is 1 row of cinema-quality emitters and runs on a 24-volt current.
Cine-Five is the latest addition to the LiteRibbon Chroma family which already features multiple RGB ribbon variations. The new revolutionary Cine-Five features cinema-quality 95+ CRI hybrid with the ability to add in crisp RGB color accents. While Cine- Five is technically part of the Chroma family, at its core, it’s essentially LiteGear’s truly most adjustable Hybrid LiteRibbon. Each variation of Cine-Five is available in 12V and 24V versions.
Power: 120W (total potential power per 5 meter roll)
Voltage Input: 24 VDC nominal (20-25.5 VDC constant voltage)
Current: 5A (total potential current per 5 meter roll)
CCT: Hybrid 2600K (+/-300K), 6000K (+/-300K)
CRI ra: 95+ (Daylite), 95+ (Tungsten)
TLCI: 98 (Daylite), 96.2 (Tungsten)
Beam Angle: 120°
Lumens (lm) Whites: 321.1 (Tungsten), 360.9 (Daylite)
Lumens (lm) Colors: 142.6 (Red), 302.2 (Green), 142.6 (Blue)
Color Space Compliant: Yes (with appropriate controller)
Green/Magenta: Yes (with appropriate controller)
Weight: 0.29 lb. (131.5 g) per 5 meter roll, including wire lead
PCB Width: 12 mm (0.47 in.)
Ribbon Overall Thickness: 2 mm (0.08 in.)
Max Length: 5 m (16.4 ft)
Cut Segment Length: 100 mm (3.94 in.)
Cut Segments per Meter: 10
Total LED Quantity: 300
LEDs per Meter: 60
LEDs per Cut Segment: 6
LED Spacing: 16.5 mm (0.65 in.) Center to Center
Dimming Range: 0-100%
Operating Temperature: -10°C to +50°C (14°F to +122°F)
Connector: Bare Wire
Mounting: Adhesive backing
LED Lifetime: 50,000 Hrs
IP Rating: 20
Certifications: UL Listed (Canada/US), CE Compliant (Europe)
