RGBLink mini-ISO - 10 Channel All-in-One Streaming Switcher
RGBLink mini-ISO - 10 Channel All-in-One Streaming SwitcherRGBLink mini-ISO - 10 Channel All-in-One Streaming SwitcherRGBLink mini-ISO - 10 Channel All-in-One Streaming Switcher
Click to enlarge
Click to enlarge
Click to enlarge
RGBLink mini-ISO - 10 Channel All-in-One Streaming Switcher
SKU: RGB-230-0007-01-0

£577.00 ex VAT
£692.40 inc VAT
https://www.productiongear.co.uk/rgblink-mini-iso-10-channel-all-in-one-streaming-switcher.htmlRGB-230-0007-01-02
GBP692.40



click to check availability

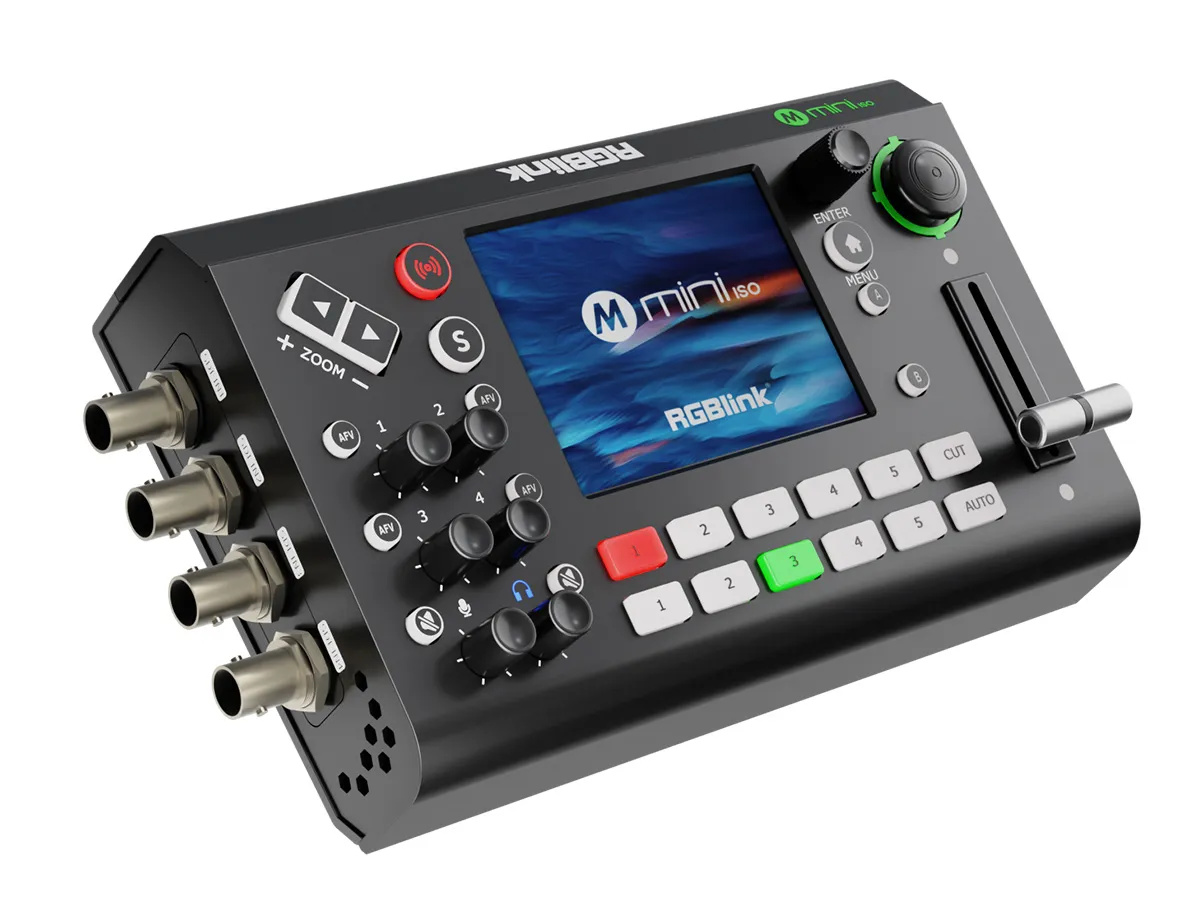

mini-ISO features four 4K HDMI2.0 inputs and four 3G-SDI inputs, one UVC input and one NDI input, supporting signals from PC, Laptop, camera and more.

Both Line and Mic level audio are supported. Dual HDMI outputs support for monitoring of multi-view Preview, Program or Test Pattern. One USB output supports YUY2 and MJPEG encoding formats, which can be recognized as a webCAM for streaming to Facebook, YouTube, ZOOM, etc.

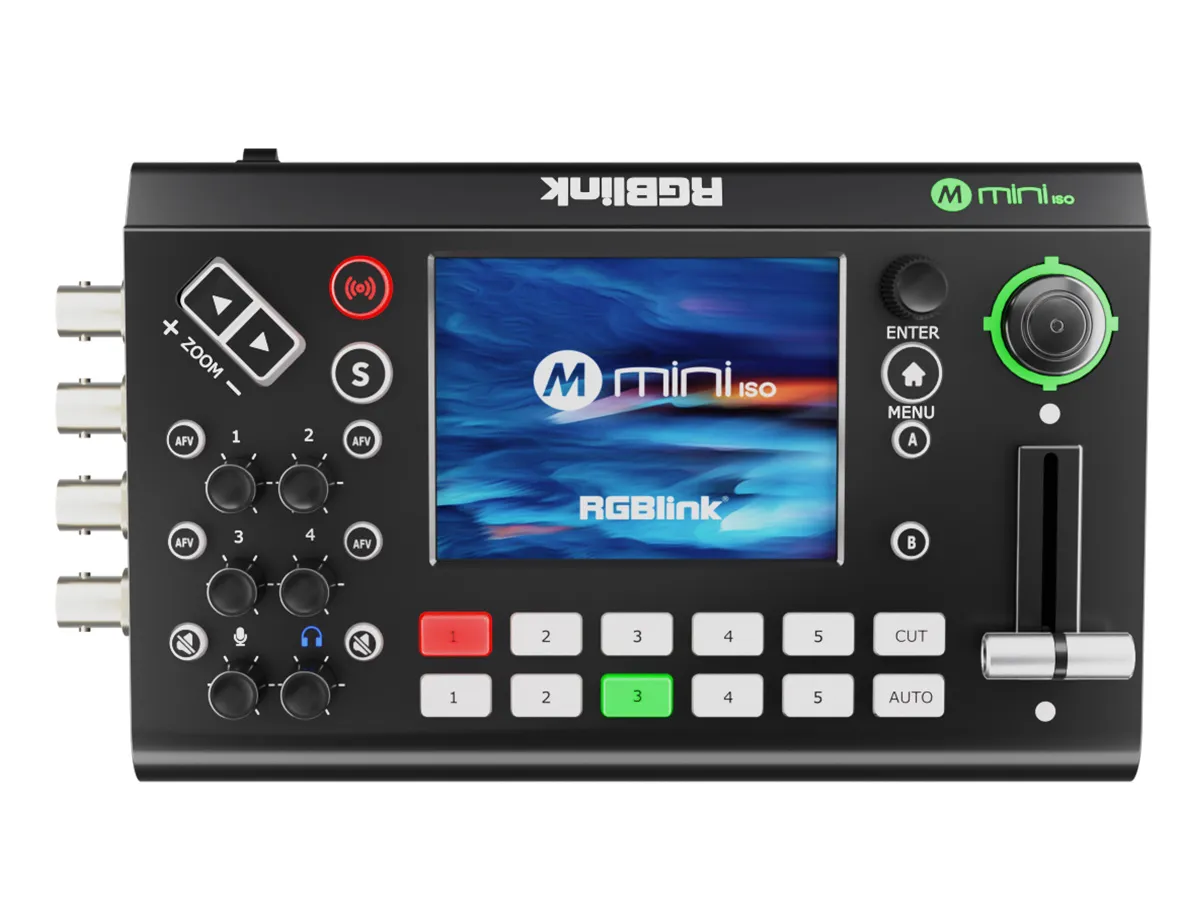

mini-ISO is built with 3.5-inch TFT touch screen for menu operation and video sources display. mini-ISO is packed with features including dynamic output control, multi-view preview, picture in picture, chroma Key, transitions, on board PTZ camera controls and much more.

mini-ISO is compatible with Windows and macOS desktop operating systems and supports control via iOS and Android mobile devices. It supports TAO Cloud integrated control and simultaneous streaming to 4 live streaming platforms via RTMP(s).

  • 3.5-inch TFT touch screen for menu operation, signal preview and working status display
  • USB 2.0 one-key recording in exFAT or FAT32 format with bit rate up to 16Mbps
  • Quad HDMI 2.0 inputs (HDCP 1.4 compliance), resolution up to 4K@60
  • USB output supports YUY2 or MJPEG format, which can be recognized as webcam for streaming
  • Quad SDI inputs supports signal from camera, recorder etc
  • RTMP(S) network streaming up to 4 platforms
  • UVC input supports signal from USB cam, USB capture etc
  • NDI output as a NDI source is a encoder of the content in the ethernet connection
  • NDI input is a decoder of the NDI source in the ethernet connection range
  • Save and load PTZ presets. One-click for preset recall
  • Dual HDMI 1.3 outputs for monitoring of multi-view Preview, Program or Test Pattern
  • 5-direction joystick and toggle for controlling PTZ camera (IP VISCA Protocol supported)
  • Mix for 4-channel HDMI/SDI embedded and 2-channel external audio
  • Specify either “green” or “blue” as the key color for Chroma Key
  • AUTO and WIPE Switch mode available
  • Luma Key support
  • 15 transition effects
  • TAO Cloud control support, compatible with mobile devices and desktop

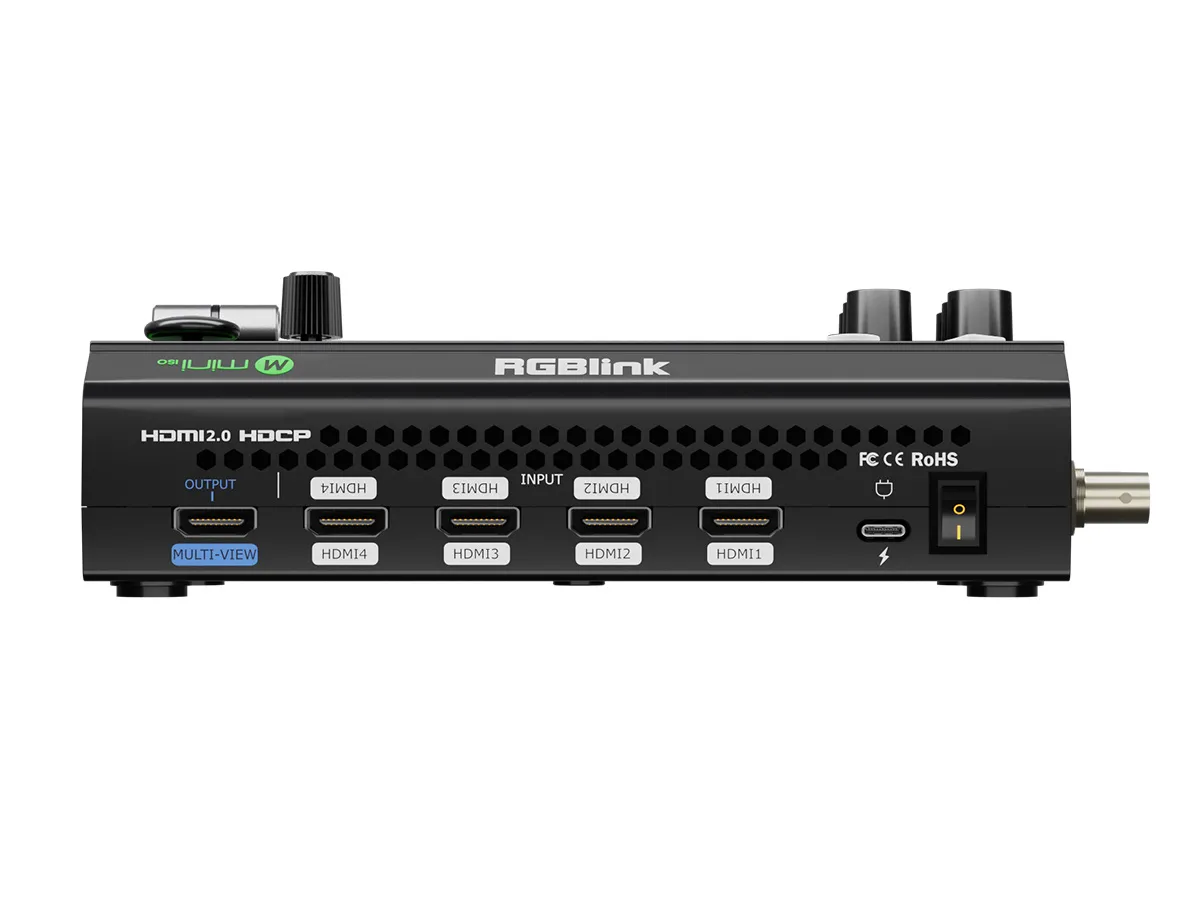

Connections:
Input:HDMI 4K:4×HDMI-A
UVC (USB Cam):1×USB-A (Webcam)
SDI:4×BNC
Media:1×USB-A (Record)
NDI:1×RJ45 (LAN)
Output:HDMI 2K:2×HDMI-A
USB (Record):1×USB-A (Record)
USB (Stream):1×USB-A (Webcam)
RTMP(s) / NDI:1×RJ45 (LAN)
Audio:Embedded Audio Input:4×HDMI-A
External Digital Input:1×USB-A (Record)
External Analog Input:2×3.5mm mini-Jack
External Analog Output:1×3.5mm mini-Jack
Communication / Stream / Upgrade:LAN:1×RJ45
Power:Power Supply:1×USB-C
PERFORMANCE
Input Resolutions:HDMI 2.0:-
SMPTE:720p@50/60 | 1080i@50/60 | 1080p@24/30/50/60
VESA:1024×768p@60 | 1280×720p@60 | 1280×768p@60 | 1280×800p@60 | 1280×1024p@60 | 1360×768p@60 | 1366×768p@60 |
1440×900p@60 | 1600×1200p60 | 1680×1050p@60 | 1920×1080p@60 | 1920×1200p@60 | 3840×2160p@60 | 4096×2160p@60
SDI:720p@50/60 | 1080i@50/59.94/60 | [email protected]/24/25/29.97/30/50/59.94/60
UVC:1080p@60
Output Resolutions:HDMI 1.3:1280×720p@50/60 | 1920×1080p@30/50/60 | 1080*1920@60
USB:1280×720p@60 | 1920×1080p@24/25/30/50/60
Video:Colour Space:RGB 8bit | YCbCr 4:4:4 8bit | YCbCr 4:2:2 8bit
Video Latency:<3 frames
Audio:Audio Format:PCM/2ch/24bit/48kHZ
Sampling Rate:48K
Bitrate:24bit
Recording / Storage:Recording Format:MP4 (up to 16Mbps)
Disk Formats:FAT32 | exFAT
Supported Standards:HDMI:2.0
HDCP:1.4
USB:3.0
SDI:SMPTE 425M (Level A & B) | SMPTE 424M | SMPTE 292M | SMPTE 259M-C | DVB-ASI
NDI:NDI | HX2
POWER
Compatibility:USB Power Delivery (PD) 3.0
Supported Cables:Certified USB PD Aware
Input Voltage:12V/2.5A
Maximum Power:30W
ENVIRONMENT
Temperature:0℃～60℃
Humidity:10%~85%
PHYSICAL
Dimensions:Device:0.60kg
Packaged:1.38kg
Weight:Device:197mm × 113mm × 60mm
Packaged:255mm × 145mm × 85mm
  • 1x RGBLink mini-ISO
  • 1x PD power adapter
  • 1x OTG cable
  • 2x USB-C data cable
  • 1x Quick guide
