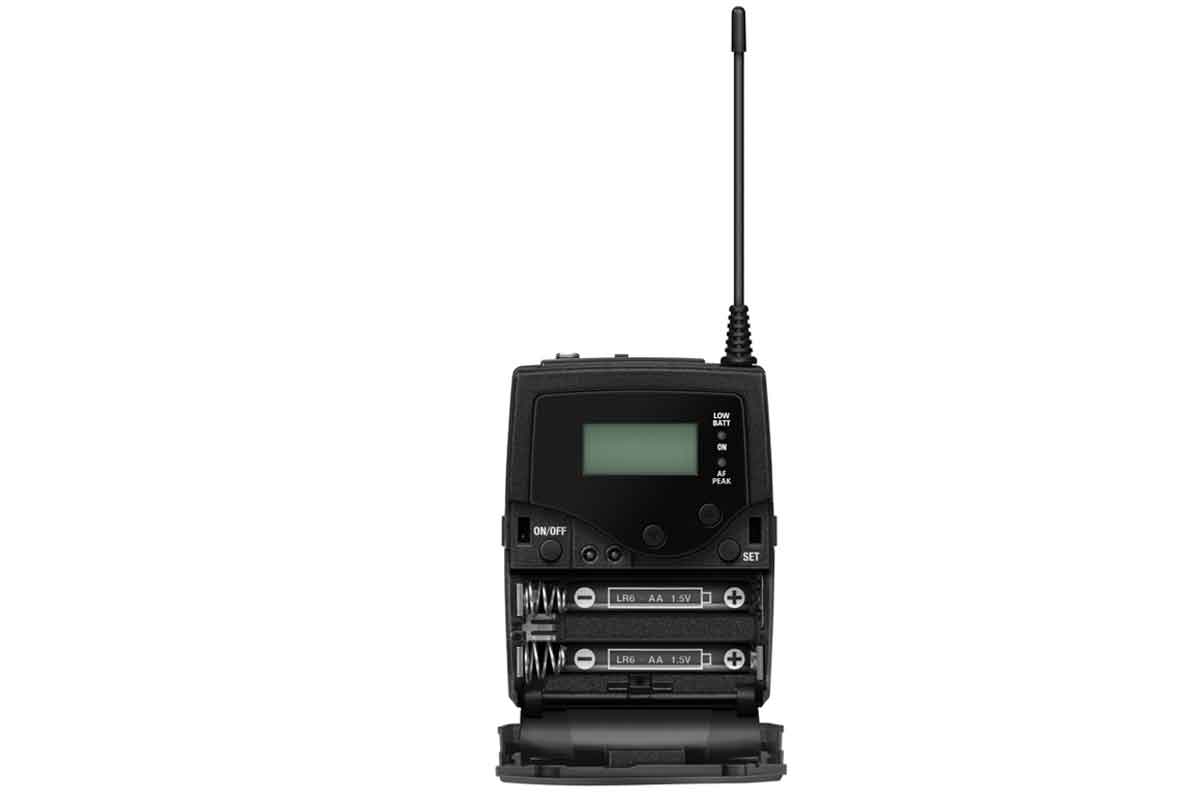

Sennheiser EK 500 G4-GBW (EK500G4GBW) Evolution Wireless G4 Pro Camera Receiver 606-678MHz
SKU: SEN-507823

£365.83 ex VAT
£439.00 inc VAT
https://www.productiongear.co.uk/sennheiser-ek-500-g4-gbw-ek500g4gbw-evolution-wireless-g4-pro-camera-receiver-606-678mhz.htmlSEN-5078233
GBP439.00





The ultimate wireless system that grows with you. The fourth generation of Sennheiser's most popular series worldwide leaves nothing to be desired in terms of flexibility, ease of use and reliability. Whether you are on tour, at an outdoor shoot, in the conference room or in the auditorium – the G4 can do it all. Powerful black camera receiver with increased bandwidth and transmission power for evolution wireless G4 500P Series systems. For professional film productions, easily mounted on any kind of camera.

  • Professional sound and excellent construction quality
  • Easy to use and fast setup time
  • Easy and flexible wireless synchronisation between transmitter and receiver via infrared
  • Up to 88 MHz bandwidth, up to 32 channels
  • Range: up to 100 metres / 330 feet
  • Increased RF output power (10/30/50 mW)
  • Up to 8 hours of operation time
RF characteristics:
ModulationWideband FM
Frequency rangeGBw: 606 - 678 MHz
Receiving frequenciesMax. 2880 receiving frequencies, adjustable in 25  kHz steps
 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation
 6 frequency banks with up to 32 programmable channels
Switching bandwidthup to 72 MHz
Nominal/peak deviation±24 kHz / ±48 kHz
Receiver principleAdaptive diversity
Sensitivity (with HDX, peak deviation)< 1.6 μV for 52 dBA eff S/N
Adjacent channel selectionTypically ≥ 65 dB
Intermodulation attenuationTypically ≥ 65 dB
Blocking ≥ 70 dB
Squelchlow: 5 dBµV
 middle: 15 dBµV
 high: 25 dBμV
Pilot tone squelchCan be switched off

AF characteristics:
Compander systemSennheiser HDX
Signal-to-noise ratio (1 mV, peak deviation)Line: ≥ 110 dBA
 Phones: approx. 90 dBA
Total harmonic distortion≤ 0.9 %
AF output voltage (at peak deviation, 1 kHz AF)3.5 mm jack socket:
 +17 dBu (mono, unbalanced)
Adjustment range of audio output level42 dB, adjustable in steps of 6 dB

Overall device:
Temperature range-10 °C to +55 °C
Power supply2 AA batteries, 1.5 V or
 BA 2015 accupack
Nominal voltage3 V battery / 2.4 V rechargeable battery
Current consumptionat nominal voltage: typ. 140 mA
 with receiver switched off: ≤ 25 µA
Operating timeTypically 8 h
DimensionsApprox. 82 x 64 x 24 mm
Weight(incl. batteries) approx. 130 g
  • 1x EK 500 G4 camera receiver
  • 2x AA batteries
  • 1x CA 2 camera adapter
  • 1x CL 1 3.5 mm jack cable
  • 1x CL 500 XLR to 3.5 mm jack adapter cable
  • 1x Quick guide
  • 1x Safety guide
  • 1x Manufacturer declaration sheet
