Blackmagic Design Fairlight Console LCD Monitor
Blackmagic Design Fairlight Console LCD MonitorBlackmagic Design Fairlight Console LCD MonitorBlackmagic Design Fairlight Console LCD Monitor
Click to enlarge
Click to enlarge
Click to enlarge

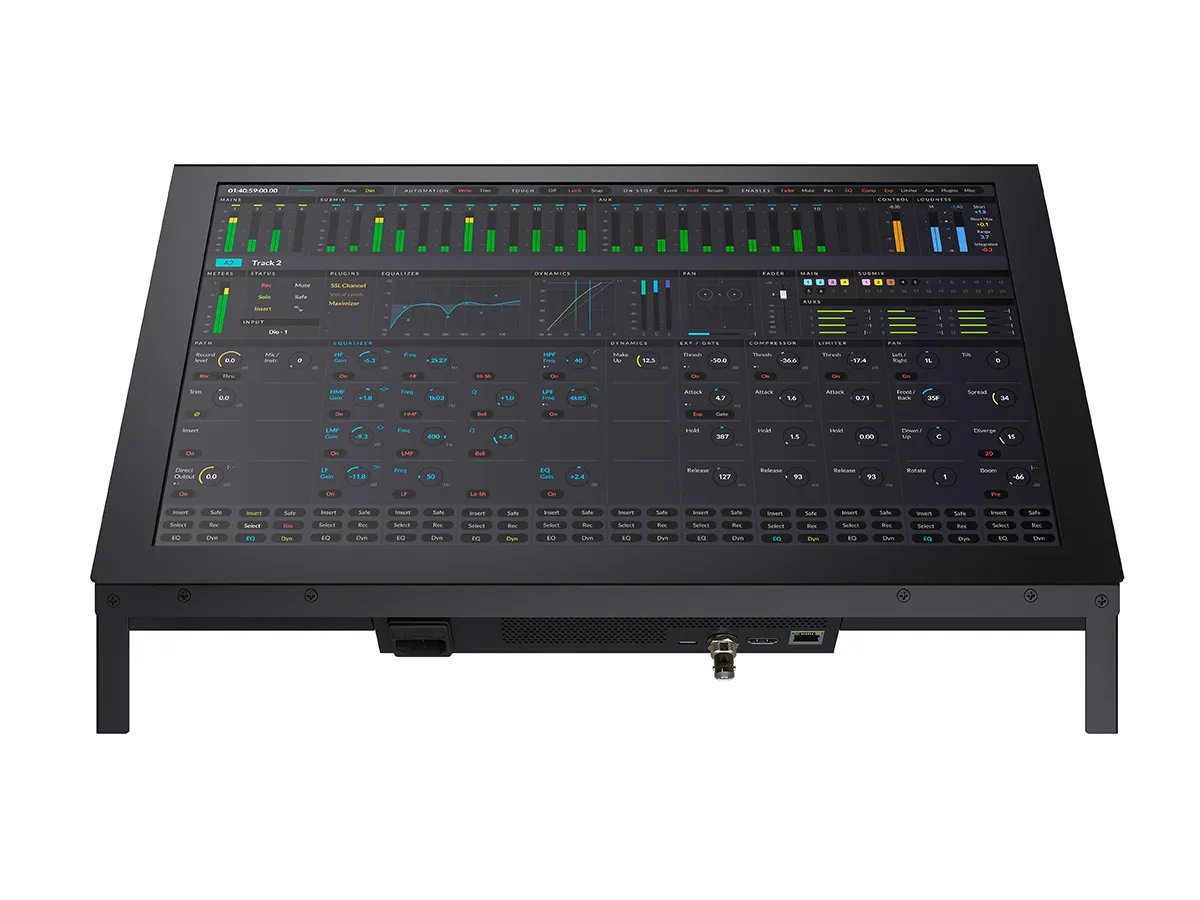

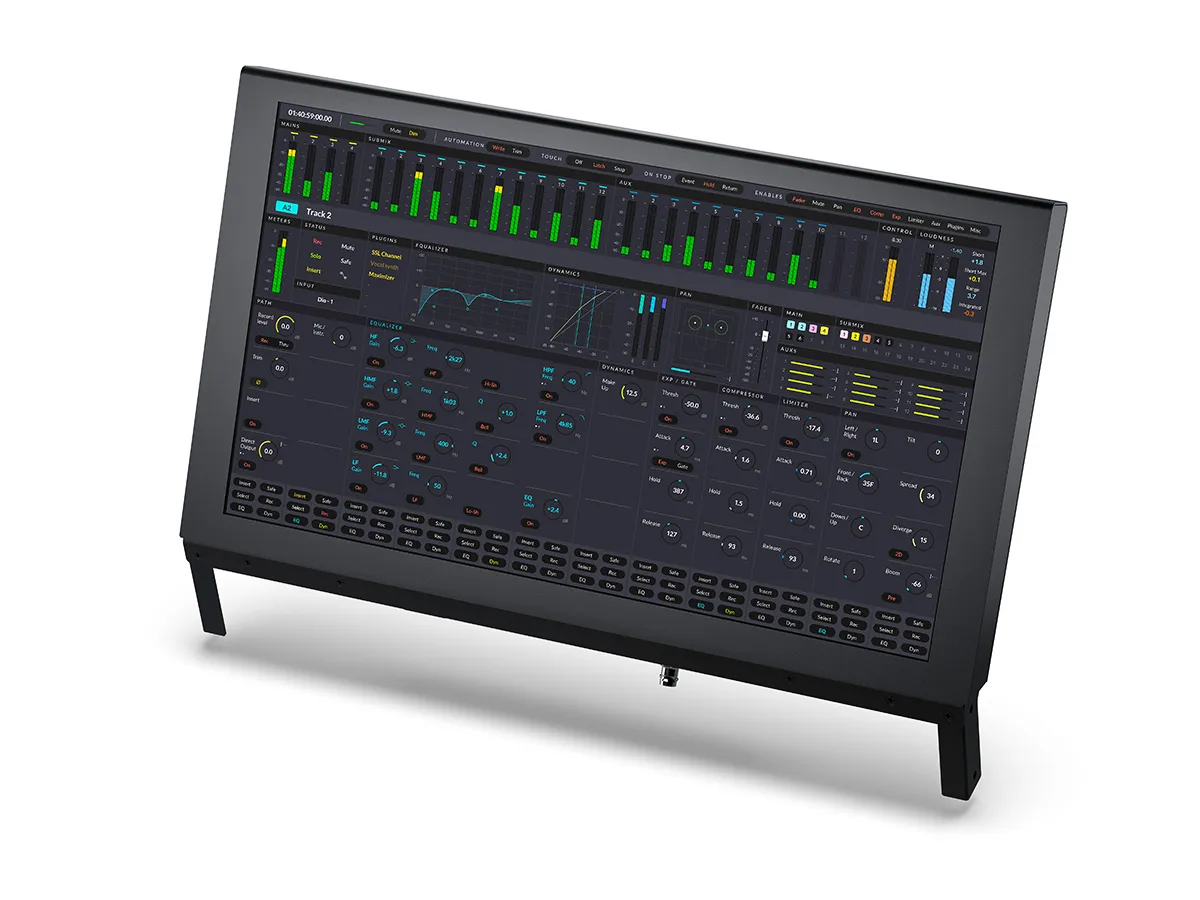

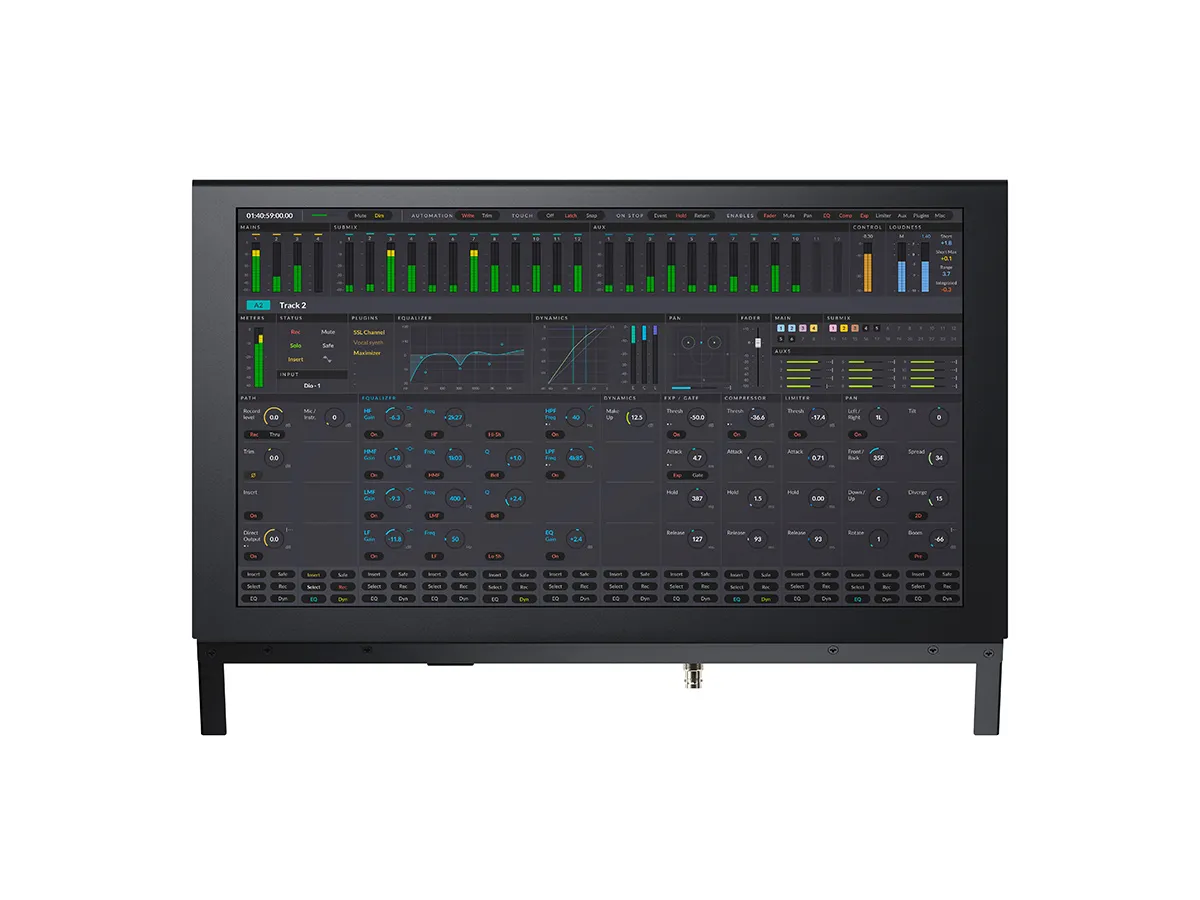

Blackmagic Design Fairlight Console LCD Monitor
SKU: BMD-BMDVRESFLCDMCS

£1,135.00 ex VAT
£1,362.00 inc VAT
https://www.productiongear.co.uk/blackmagic-design-fairlight-console-lcd-monitor.htmlBMD-BMDVRESFLCDMCS5
GBP1362.00



click to check availability



Add a high resolution LCD monitor to every bay of your Fairlight console with Fairlight Console LCD Monitor. When installed above channel faders and controls you get instant graphic feedback for that channel, access to additional controls and more. Featuring an ethernet interface to display channel information, there is also an HDMI interface you can connect to your computer to see native plug?in interfaces and an SDI BNC for video program or studio camera previews.

CONNECTIONS
Ethernet:Ethernet supports 10/100/1000 BaseT.
HDMI Video Input:HDMI Type A.
SDI Inputs:1 x 3G‑SDI.
SDI Rates:1.5G, 3G.
STANDARDS
HDMI Video Standards:1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
SDI Video Standards:1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60
SDI Compliance:SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M‑B, SMPTE 425 Level A and Level B.
SDI Video Sampling:4:2:2
SDI Colour Precision:10-bit
SDI Colour Space:YUV
UPDATES & CONFIGURATION
Connections:1 x USB Type‑C for software configuration and software updates.
SOFTWARE
Updates:Internal software upgrade via updater application.
OPERATING SYSTEMS
Windows:Windows 10 Creators Update
Windows 11
Windows 11 for ARM
Mac:Mac 13.0 Ventura,
Mac 14.0 Sonoma or later.
Linux:Rocky Linux 8.6
SETTINGS CONTROL
Setup:Fairlight Studio and Console setup utility software when connected by USB.
POWER REQUIREMENTS
Power Supply:Internal 100 - 240V AC 50/60Hz with IEC C14 mains input.
Power Usage:20W max.
PHYSICAL SPECIFICATIONS
Dimensions:490 x 328 x 121mm / 19.29 x 12.9 x 4.76"
Weight:4.5kg / 9.92lbs
ENVIRONMENTAL SPECIFICATIONS
Operating Temperature:0° to 40°C (32° to 104°F)
Storage Temperature:-20° to 60°C (-4° to 140°F)
Relative Humidity:0% to 90% non-condensing
  • 1x Fairlight Console LCD Monitor
