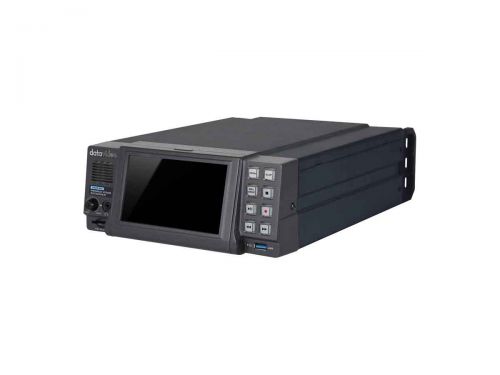

Datavideo HDR-80 ProRes Video Recorder

ProGear Price:

Call for price

ProGear Stock Code:

DATA-HDR80



The HDR-80 is Datavideo’s newly designed dual 2.5-inch hard disk recorder. The device has a built-in 5-inch touch screen, allowing you to easily configure parameters and view the video. 3G-SDI and HDMI inputs utilize the ProRes video compression technique to provide superior video quality.

The HDR-80 offers close caption function. Subtitles can be saved as a separate file on the disk for quick post-editing. Audio input can be embedded into video for output playback thus making HDR-80 the device for live event broadcast. Control interface includes DVIP (Ethernet), GPI and RS-232, which are adaptable in all environments.

  • ProRes Video Recorder
  • 5-inch LCD touch screen for operation and monitoring live recording status
  • 3G/HD/SD-SDI and HDMI input and output with audio embedding
  • Multiple ProRes video compression techniques for recording (ProRes 422 Proxy, ProRes 422 LT, ProRes 422, ProRes 422 HQ) with superior 10-bit 4:2:2 image quality
  • Dual 2.5" SSD storage so there is always more than enough for long hour recording
  • Video input: 1 x 3G-SDI, 1 x HDMI
  • Video output: 2 x 3G-SDI (one loop thru), 1 x HDMI
  • Audio input: 2 x XLR Analogue
  • Audio output: 2 x XLR Analogue
  • Control interface includes DVIP (Ethernet), GPI and RS-232, which are adaptable in all environments
  • Provides time code as well as black burst and tri-level sync signals
  • Close caption function allowing the subtitle to be saved separately as meta data in .mov file format
  • Video Standard: HD & SD
  • Video Format: 1080p 23.97/24/25/29.97/30/50/59.94/60Hz | 1080i 50/59.94/60Hz | 720p 50/59.94/60Hz
  • Supported Video Input Signal: 1 x SDI | 1 x HDMI
  • Monitoring / Playback output: 1 x SDI | 1 x SDI Loop Out | 1 x HDMI
  • Analogue Audio Input & Audio Output: 2 x Balanced XLR (Stereo pair)
  • Embedded Audio: SDI Input / Output (8CH) | HDMI Input / Output (2CH)
  • Storage Medium: 2.5” SSD, USB Flash Drive, SD Card
  • Estimated Record Time (min per 10GB): SD: 90 (Proxy), 39 (LT), 27 (Standard), 18 (HQ) | HD: 27 (Proxy), 11.5 (LT), 8 (Standard), 5.5 (HQ) | 3G: 13 (Proxy), 6 (LT), 4 (Standard), 2.5 (HQ)
  • Recording Media: Removable SSD,USB, SD Card
  • Storage File System: exFAT
  • Recorded File Format: QuickTime | .MOV
  • Video Recording Bit Rate / Colour Sampling: ProRes HQ 4:2:2 | ProRes Standard 4:2:2 | ProRes LT 4:2:2 | ProRes Proxy 4:2:2
  • Audio Recording Format: Uncompressed PCM | Sampling rate 48KHz 24bit
  • Time code in/out: Yes
  • External Sync/ Genlock: Black Burst & Tri-level with loop thru
