Exalux CONNECT eTX4
SKU: EX-CNT.004.001

£1,172.73 ex VAT
£1,407.28 inc VAT
https://www.productiongear.co.uk/exalux-connect-etx4.htmlEX-CNT.004.0011
GBP1407.28



click to check availability

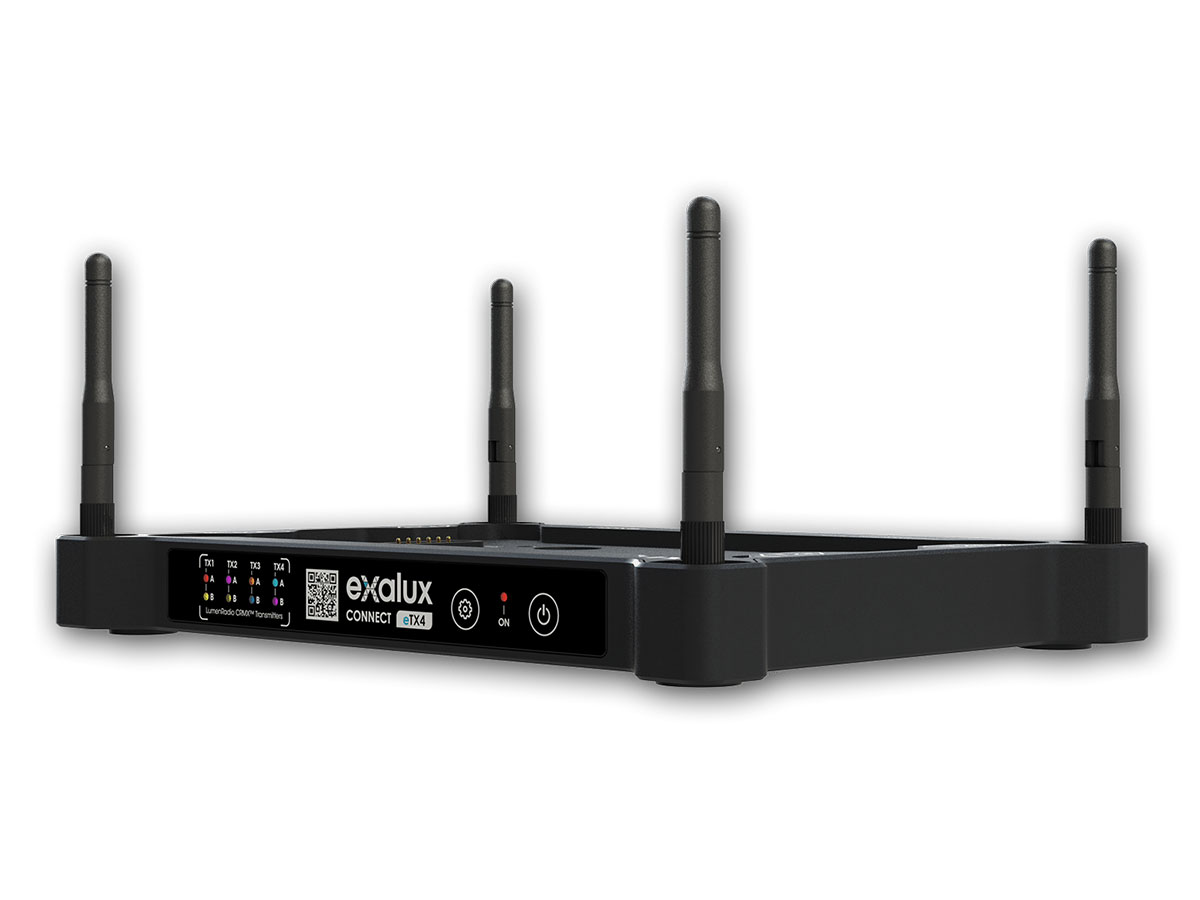

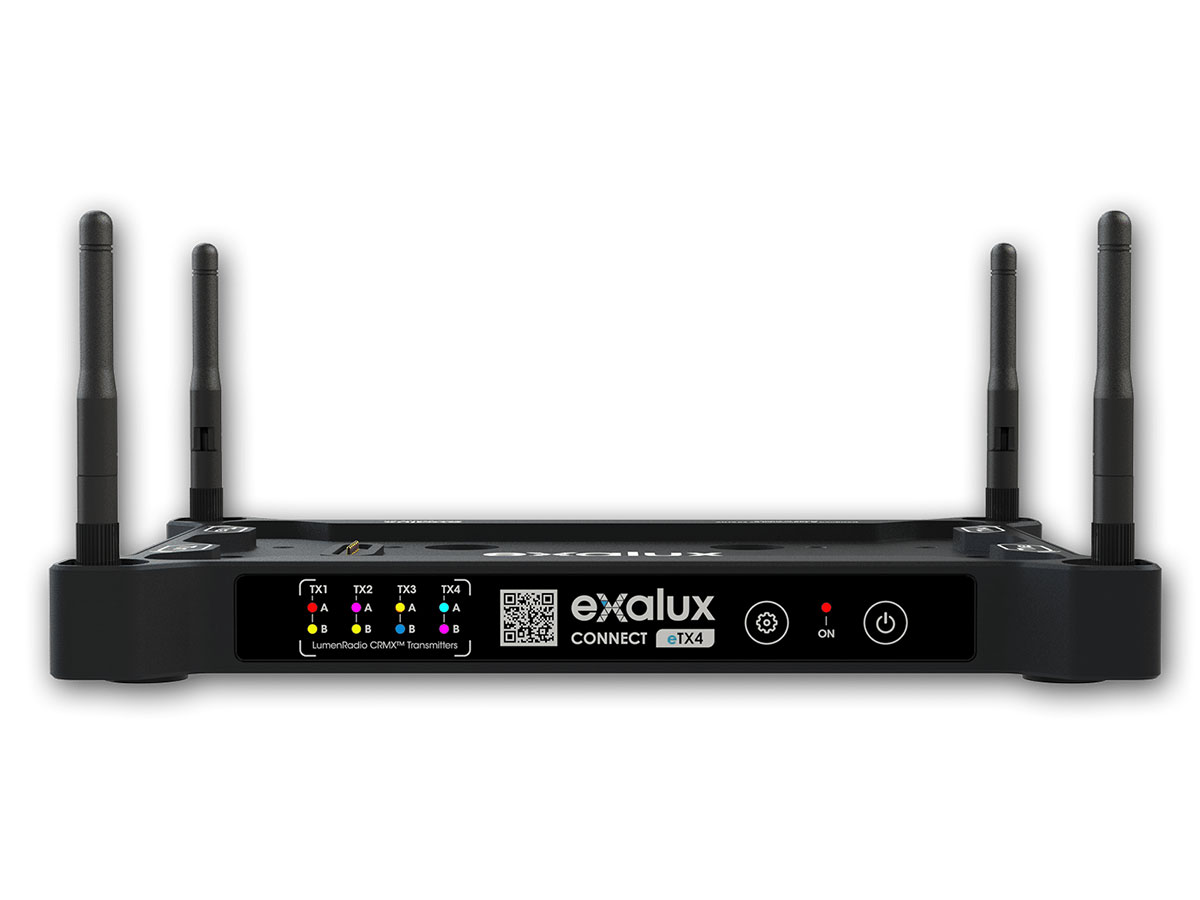

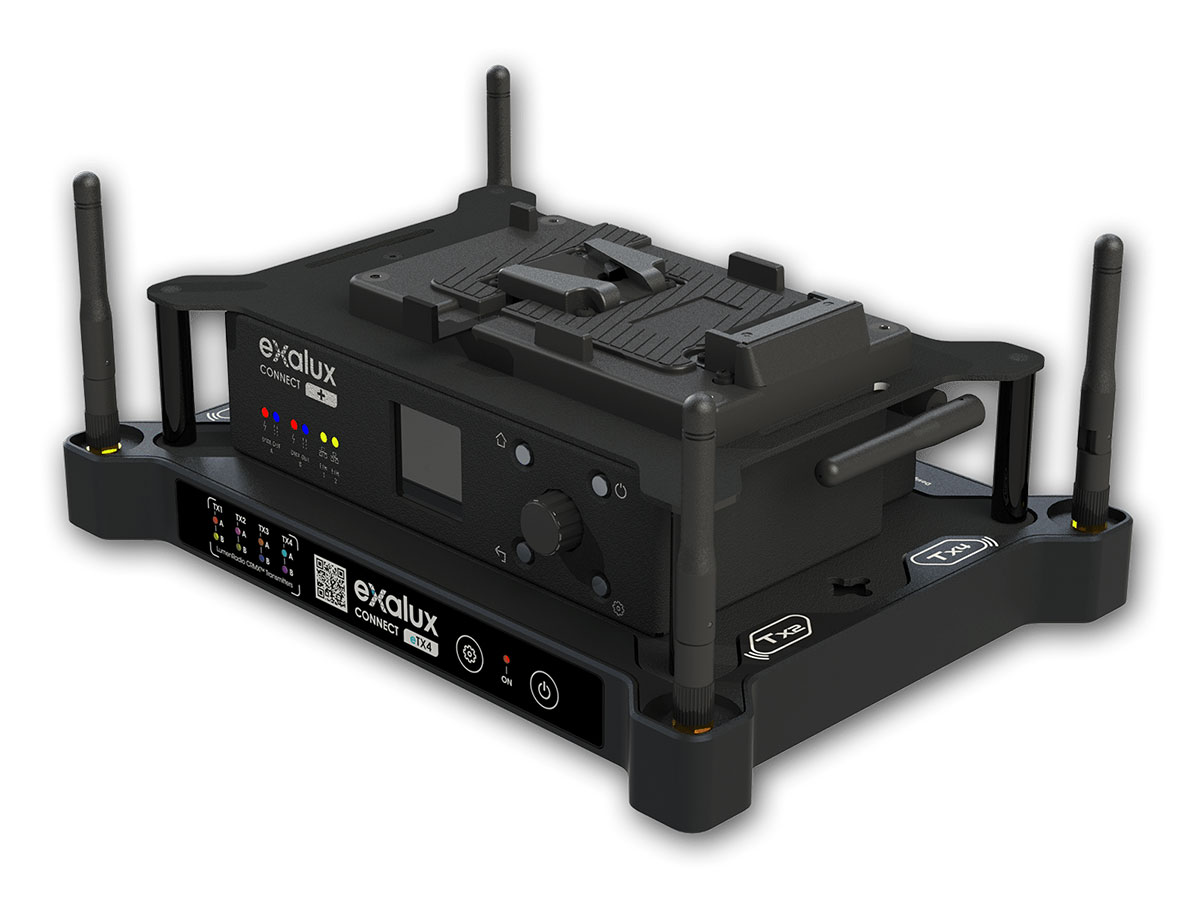

EXALUX™ CONNECT eTX4 is an add-on wireless DMX/RDM transmitter for CONNECT+. It features 4 CRMX/CRMX² transmitters in an ultra compact unit.

  • CONNECT+ Add-On Unit
  • 4 transceivers / 4 DMX universes
  • DMX + RDM compliant
  • CRMX, CRMX², W-DMX compliant
  • Removable antennas
  • User friendly design
  • 5/8’’ Spigot mount
FEATURES
Wireless:LumenRadio™ TiMoTwo
Protocol:CRMX, CRMX², W-DMX
Power:Powered from CONNECT+SnapLink port
Settings:Settings from CONNECT + control panel
Interface:Membrane switch keypad (Settings / On-Off), RGB LED indicators
Others:Firmware upgrade from CONNECT+USB port
TECHNICAL SPECIFICATIONS

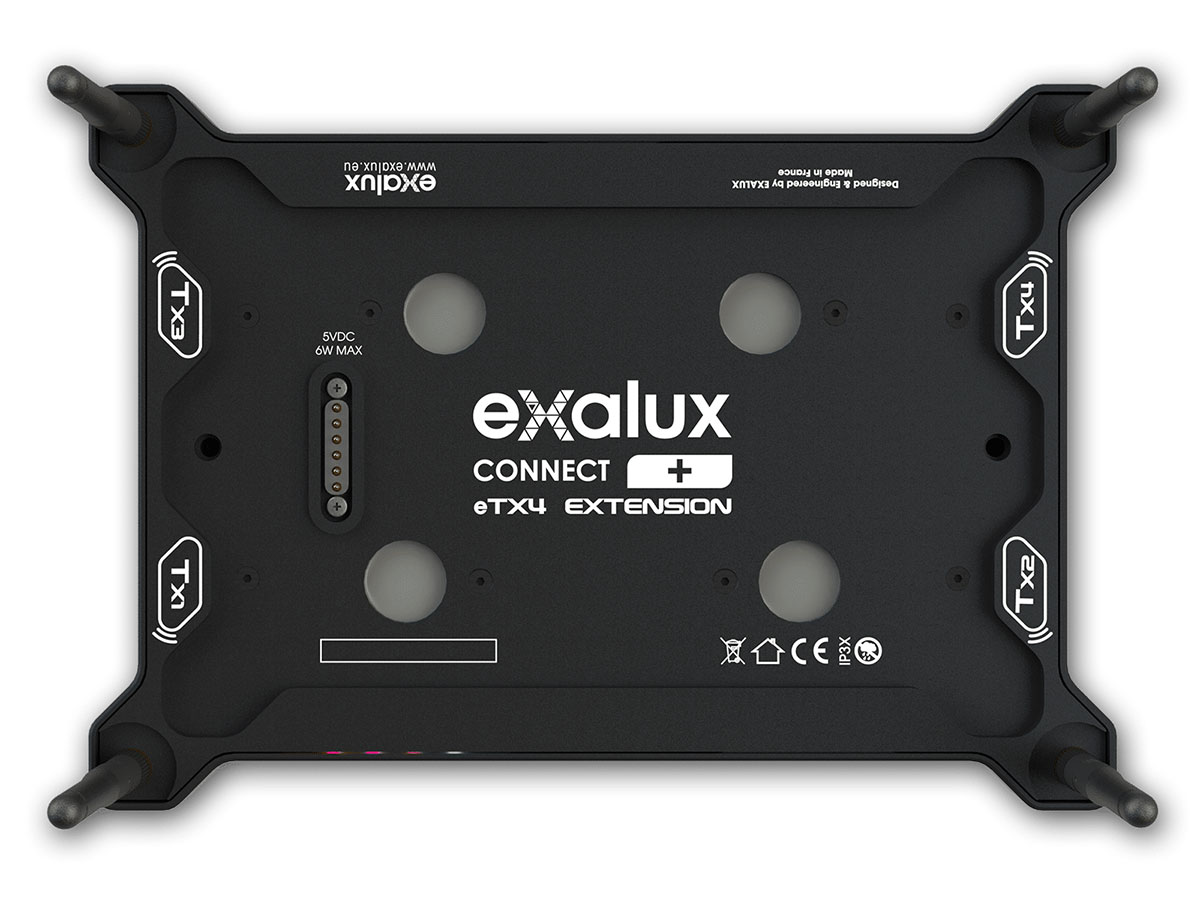

Power Connection:Exalux SnapLink , 2 PoGo Pins (from the CONNECT+ Unit)
Interface:Switch : Settings , Power
RGB LED Indicators : Univers colors
DMX Status(LED)
Power Consumption:~6W max
Housing / Mounting:Aluminum / black
IP Rating:IP3X
Certifications:CE, RoHS
Weight:950g
OPERATING CONDITIONS
Input Voltage:Typ : 5VDC
Storage Temperature:Min : -20°C | Typ : 25°C | Max : +75°C
Operating Temperature:Min : -10°C | Typ : 25°C | Max : +55°C
RADIO INTERFACE
Standard / Technology:LumenRadio™
Protocols:CRMX, CRMX², W-DMX G3/G4s
Frequency:2.402 ~ 2.480 GHz
Antenna:Omnidirectional, 2.4GHZ 2.0dBi, SMA
RF Output:20 dBm (100mW)
RF Modulation:GFSK
Range:500-1000m (depending on the environment)
SNAPLINK INTERFACE
Protocol:USB2.0
Voltage:5VDC
