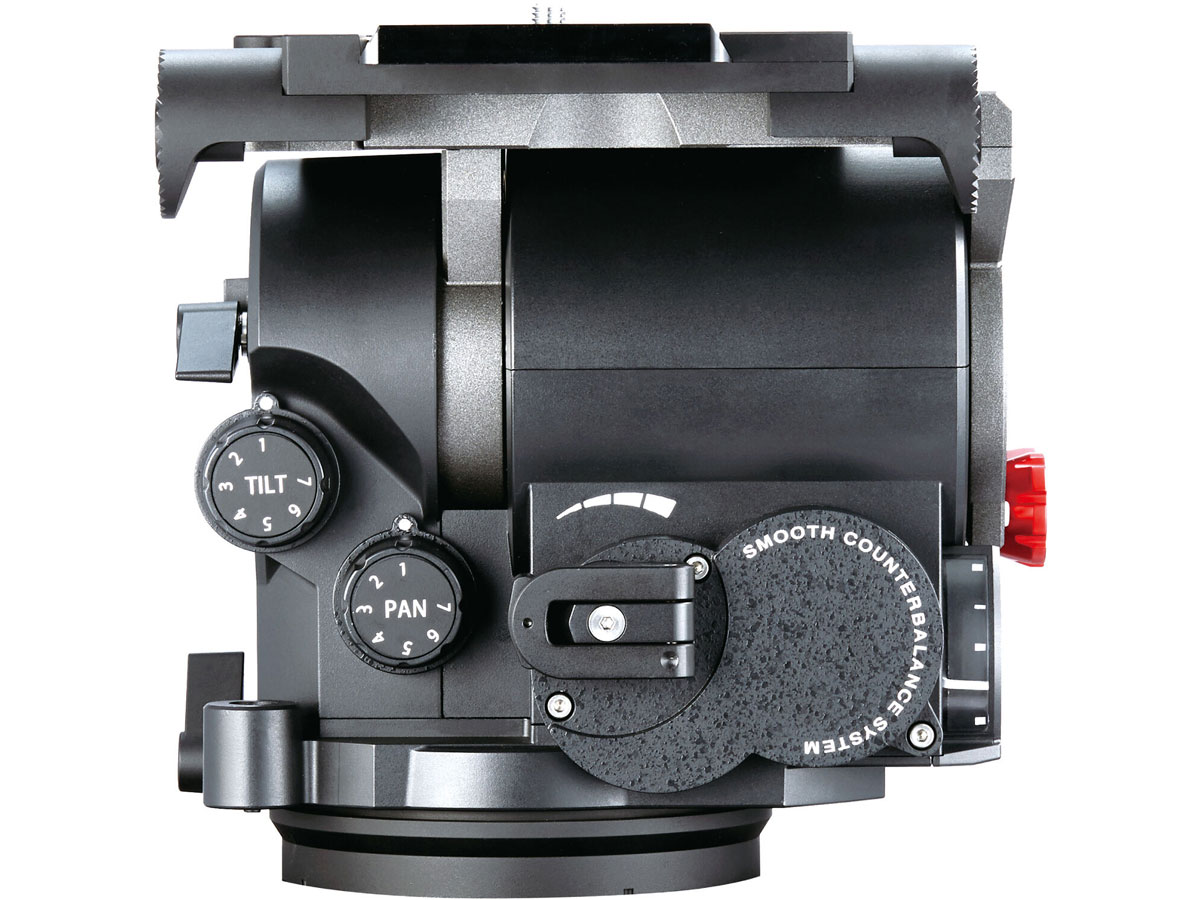

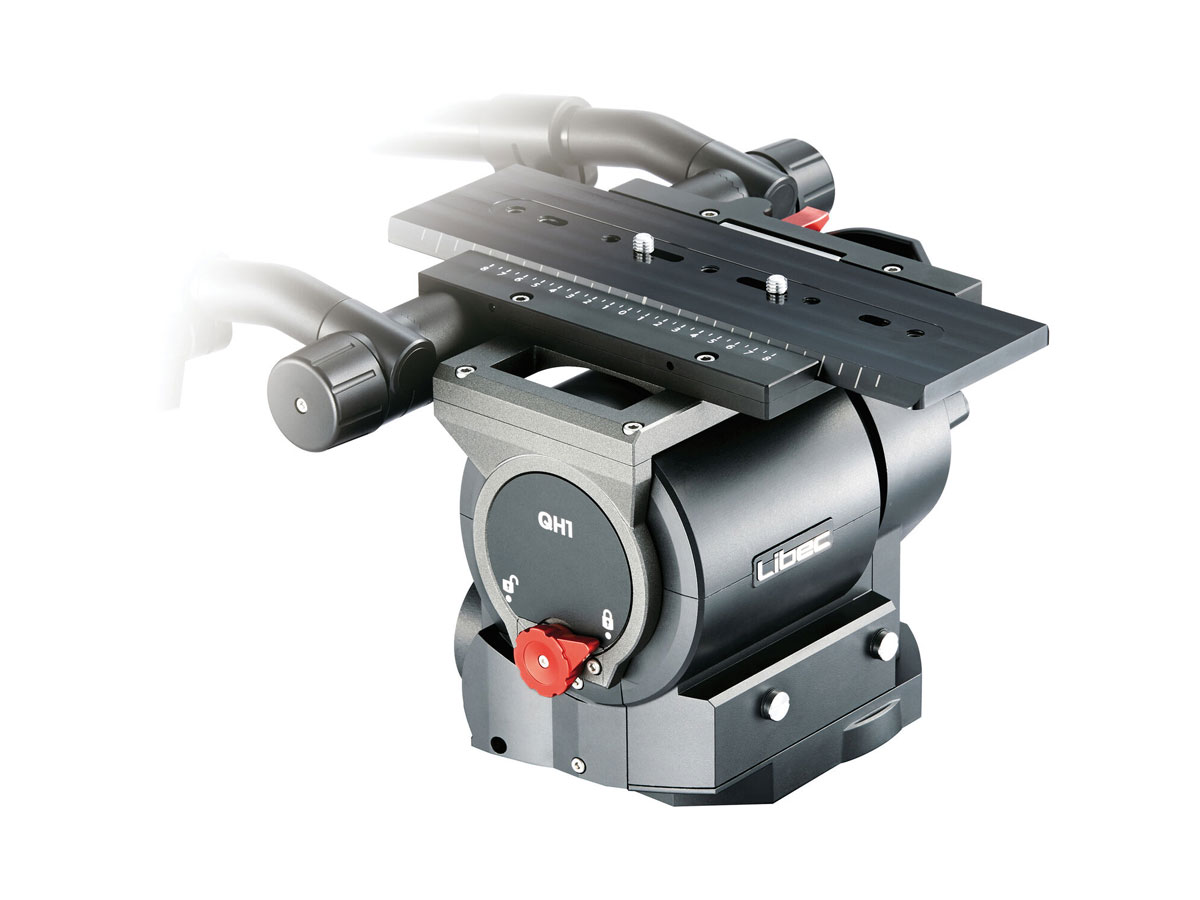

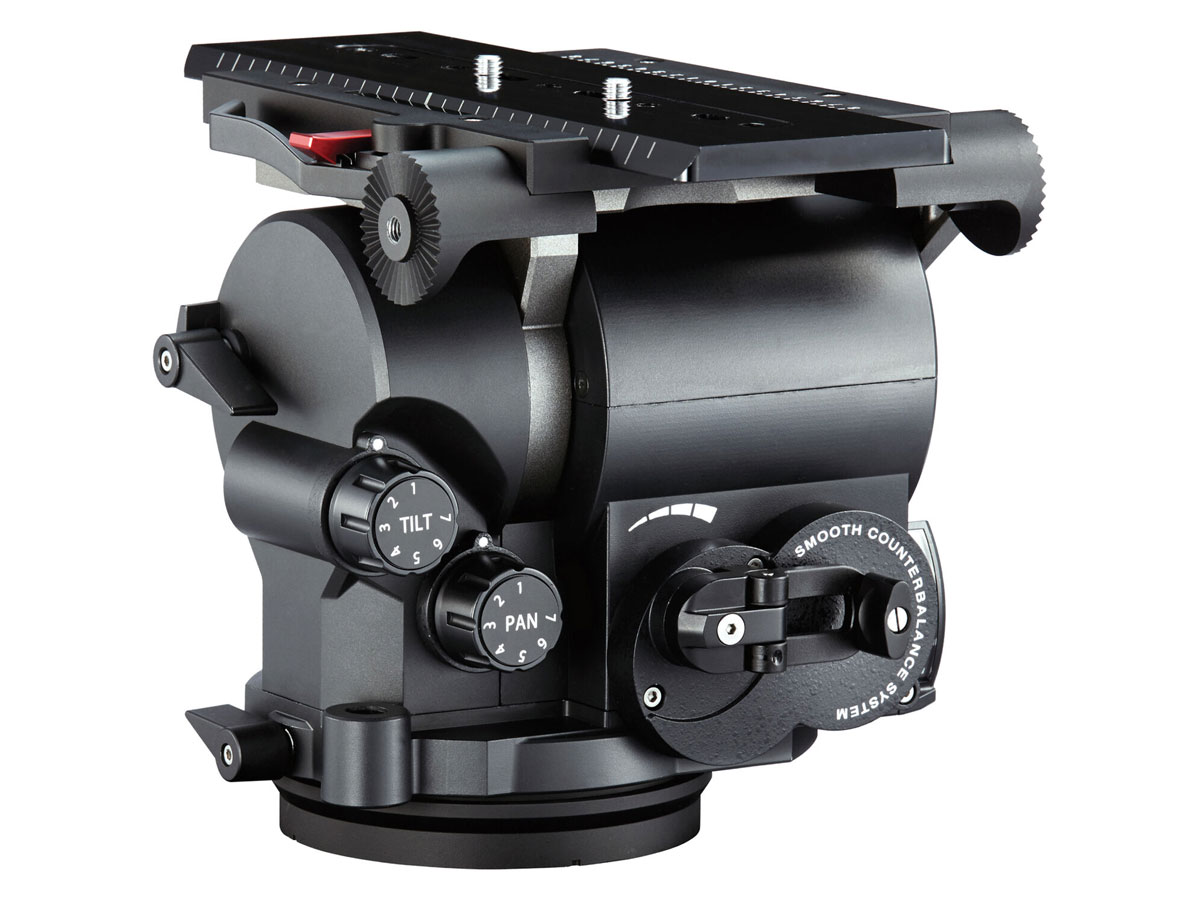

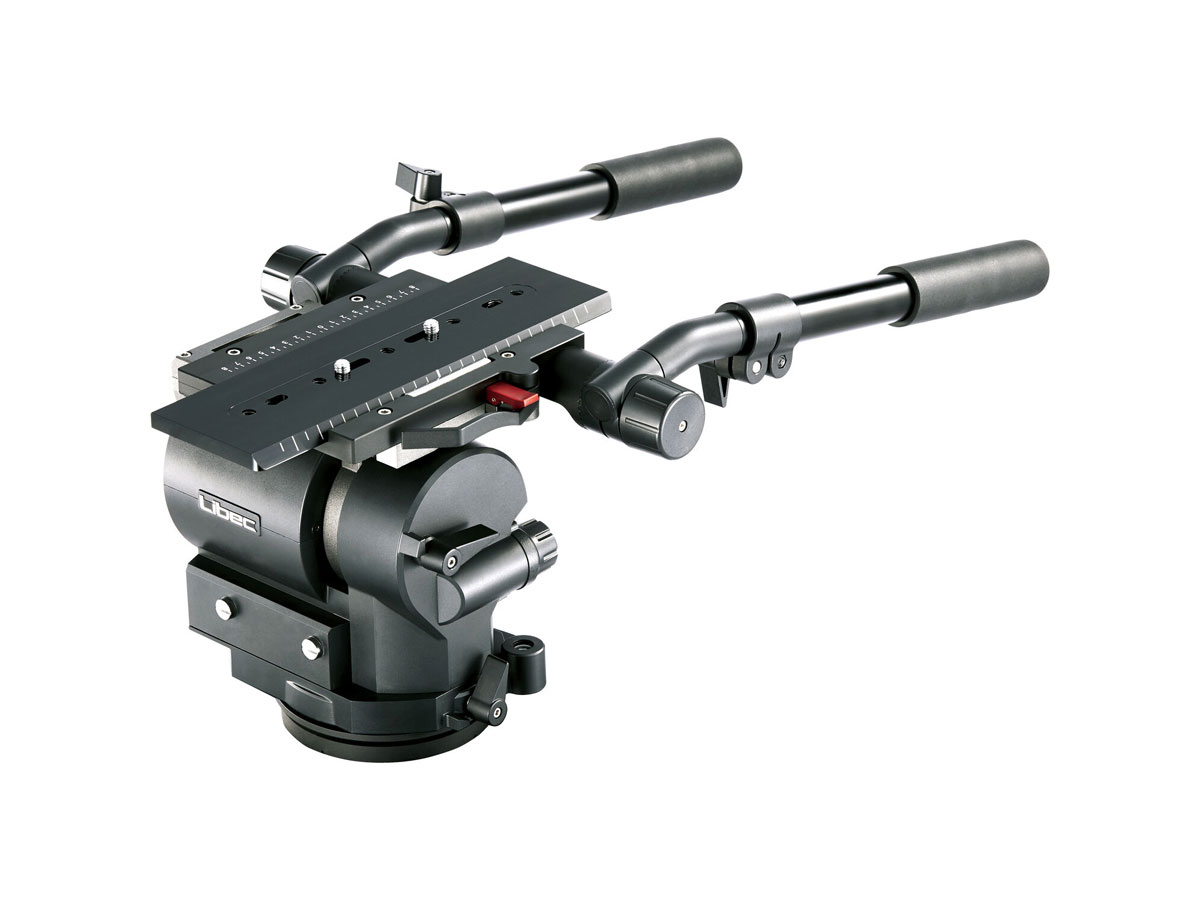

Libec QH1 Fluid Head
SKU: LIB-QH1

£6,030.00 ex VAT
£7,236.00 inc VAT
https://www.productiongear.co.uk/libec-qh1-fluid-head.htmlLIB-QH114
GBP7236.00





Heavy duty QH1 Fluid Head with 2x Extendable Pan Handles PH-15, centre tilt lock, snap on/off sliding plate, smooth counterbalance system and 150mm ball base adapter. For the camera system's safety, the head can be physically locked into a centre tilt position. Even at a distance, the arrow shaped knob and Lock/Unlock symbols are visible. The BL-150 ball base adapter is included inside the kit, which converts the flat base head into a 150mm ball head. The Smooth Counterbalance System is a unique Libec technology that allows the counterbalance knob to be adjusted with constant motion to smoothly reach the minimum and maximum power range. The foldaway knob is designed for easy speedy adjustments. The QH1 Fluid Head supports up to 40kg.

  • 40kg payload,
  • 2x Extendable Pan Handles
  • Centre tilt lock

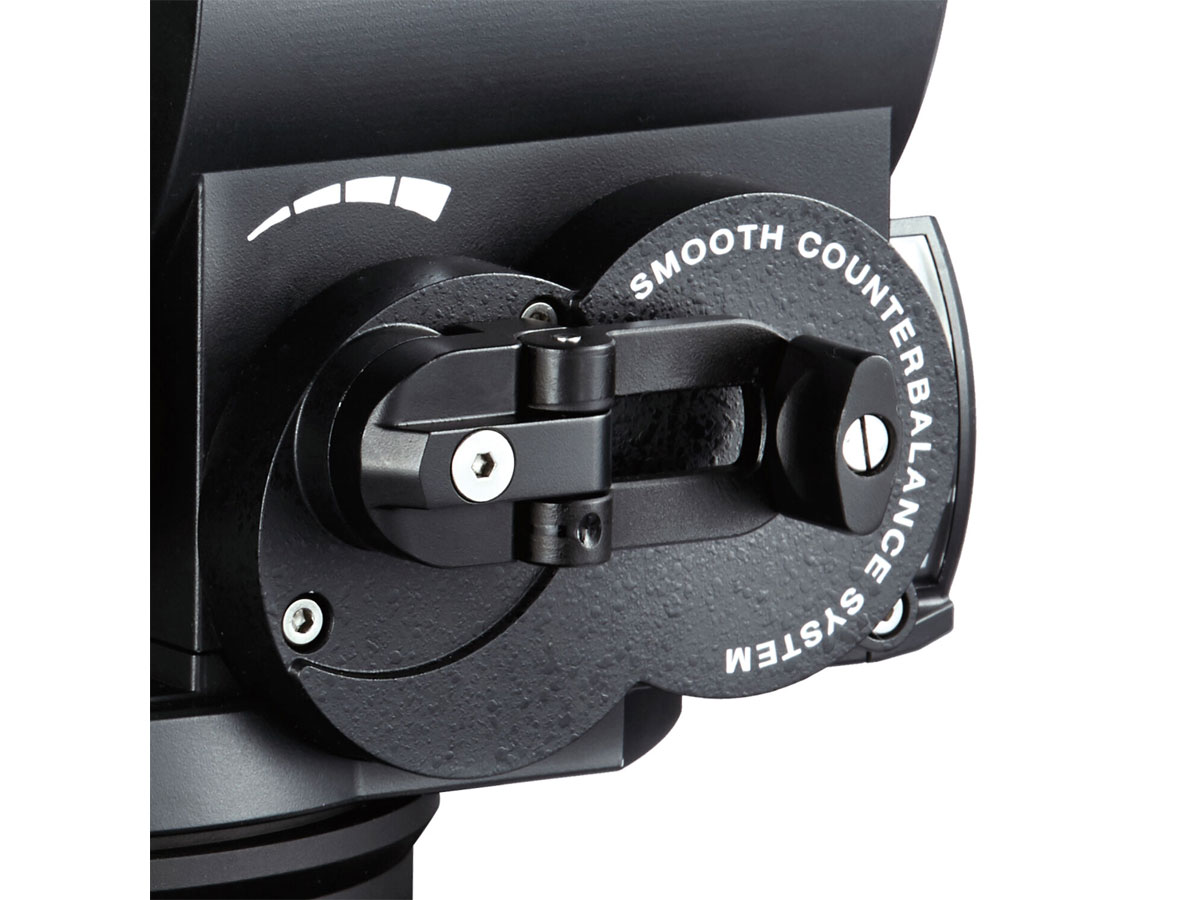

  • Smooth counterbalance system
  • Flat base & 150mm ball
  • Snap on/off plate system
  • 7 Step Drag Mode
  • Illuminated Bubble Level
  • Pedestal compatible
Counterbalance range15 to 35kg / 33.0 to 77.0lb (C.G.125mm)
Payload40kg / 88.0lb
CounterbalanceContinuous
Drag mode7STEP
Tilt angle+90° / -70°
Temperature range-20°C to +60°C / -4°F to +140°F
Bubble levelIlluminated
Camera plateSliding plate
Sliding range+/-75mm / 2.9"
Plate attachment3/8" screw × 2
Spare screw3/8" screw × 2
Weight12.7kg / 27.9lb
  • Libec QH1 Fluid Head
  • 150mm Half Ball Adapter
  • 4 x Mounting Screw for Half Ball Adapter
  • 2 x Telescoping Pan Bar
  • Camera Plate with Two 3/8"-16 Screws
  • 2 x Spare 3/8"-16 Camera Plate Screw
