Maxima 3 + Fresnel Lens + S-Mount Locking Ring
SKU: MAX-MX3-FRK

£2,395.00 ex VAT
£2,874.00 inc VAT
https://www.productiongear.co.uk/maxima-3-fresnel-lens-s-mount-locking-ring.html0805698568265MAX-MX3-FRK8
GBP2874.00





Maxima 3 is the most refined and performant compact-body LED on the market today, delivering a precise and consistent luminous output across the whole dimming range. Flicker-free operation is guaranteed up to 10,000 fps. The minimalist controls on the body are paired with extensive controls accessible via the iOS and Android app, which can simultaneously control up to 24 Maxima 3.

Like every Maxima product, Maxima 3 is designed, engineered and built exclusively in Italy.

The all-in-one workhorse
Maxima 3 is the ultimate all-in-one fixture designed to speed up your workflow in every setup, be it in the studio or on location. Maxima 3 allows you to work faster and focus on your artistic vision.
  • Unibody, single-cable
  • 4.2 kilograms
  • 300W Power
Versatile power - Extreme versatility, wherever you need it.
Maxima 3 has been conceived to enable flawless and fast operation both in the studio and on-location, thanks to the integrated, all-in-one body.Maxima 3 body features analog controls for the essential functions and advanced features accessible via the iOS and Android app.

Lighting perfection.
  • 98 CRI / 99 TLCI - The ideal lighting to faithfully reproduce colors across the whole dimming range and seamlessly match sunlight.
  • Single point light - A hard, single point lighting enabling perfect shadows without the issues deriving from multi-point light sources.
  • 15° to 60° light beam - The 8" borosilicate Fresnel lens combined with the pump-action focusing system allow for maximum versatility in every lighting scenario.

Less weight, more stiffness - Carbon reinforced unibody design.
A single-piece, carbon reinforced body leading to performances superior to those of alloy composites. The extra-matte coating of Maxima 3 body is engineered for maximum weather protection and for eliminating  unwanted reflections.

3 lamps in one.
  • Silent mode - In silent mode, Maxima 3 operates in the 10-160 W range and emits only 19dBa of noise. The best mode when noiseless operation is of paramount importance.
  • Regular mode - In regular mode, Maxima 3 operates in the 20-240 W range and emits only 26dBa of noise. This is the most balanced ratio between luminous output and noise.
  • Boost mode - In boost mode, Maxima 3 operates at its full power between 200-310W for those scenarios where audio is not being recorded or Maxima is placed far from the scene.

Less heat, more light - A full-copper heatsink
The patent-pending heatsink of Maxima 3 is a feature integral to the current and future Maxima lineup and provides a 40% more efficient luminous performance compared to aluminium heatsinks of standard LED lamps.
  • 40% more output
  • Less heat stress
  • Longer LED life

Total-care warranty - 2 years warranty.
We have built a durable and reliable product: that's why we are offering 1 year warranty covering both the electronics and the body which can be extended for one further year by registering your Maxima 3 online.

The smartest light - Powered by ARM CPU
The whole Maxima family is based on a common architecture and is powered by an ARM® Cortex-M7 processor running at up to 216 MHz, ensuring high-performance Floating-Point Processing. Real-time tasks are enhanced with an interrupt latency as low as 20 nanoseconds.

From hard to soft light
Thanks to the S-Mount Locking ring you can easily convert your Maxima 3 Fresnel Kit into a versatile lamp capable of accepting a vast array of S-Mount modifiers, like softboxes and lanterns.

Light Source:
Daylight COB LED
Luminous Output:
128lm/W 25°C
104lm/W 85°C
Colour Rendition (CRI):
98
Colour Rendition (TLCI):
99
Cooling:
Full copper heatsink, CPU controlled forced air
Optical System:
Focusable 200mm Fresnel lens; accessory S-Type mount
Processor:
ARM Cortex-M7
Dimmer:
10%-100% flicker-free, high-frequency CPU controlled output
Focusing:
Propriety pump-action attachment
Lens Type:
200mm Borosilicate Glass Fresnel
Beam Angle:
15° to 60°
Noise Level:
  • Silent Mode: 19dBa
  • Regular Mode: 26dBa
  • Boost Mode: 39dBa
Power Supply:
Integrated 500W PSU
Rating:
90-250 Volts AC, 50-60Hz
Power Consumption:
  • Silent Mode: 10W - 160W
  • Regular Mode: 20W - 240W
  • Boost Mode: 200W - 310W
Ambient Temperature Operation:
-20°C to 35°C
Radio Interface:
Bluetooth 4.2 (mobile app for iOS and Android)
Cable Type:
5 meters, ultra-flexible Neoprene
Chassis Power-In Connector:
Neutrik PowerCon 20
Weight:
5.4kg
Length:
470mm
Stand Connector Type:
16mm/28mm male or female spigot

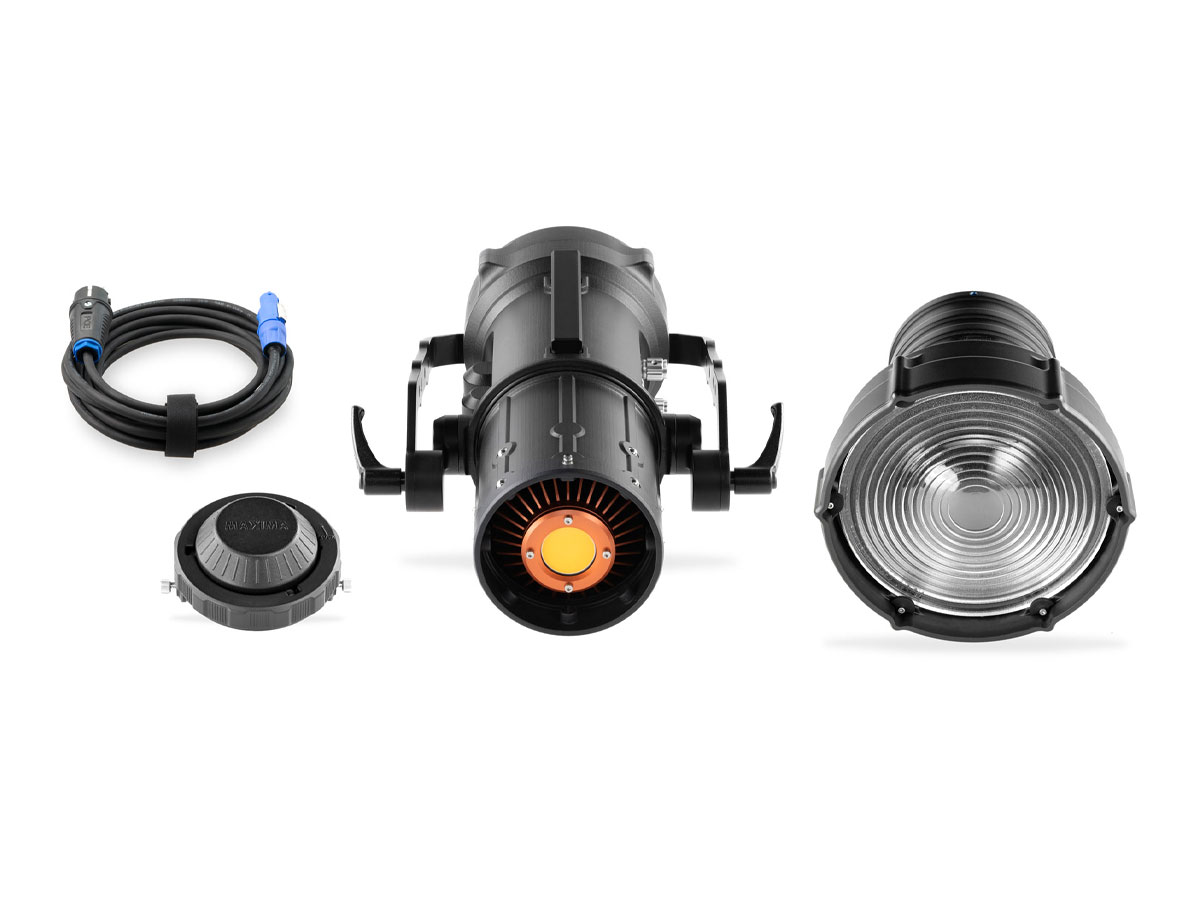

  • Maxima 3
  • Maxima 3 8″ Fresnel reflector
  • Maxima 3 S-Mount Locking Ring
  • Maxima 3 Extension-Tube
  • Maxima 3 yoke stand
  • Maxima 3 heavy-duty flight case
  • 5 meters Neoprene ™ power cable
