| Image Sensor |
|---|
| Sensor Type | 1.0-type (13.2mm x 8.8mm) Exmor RS CMOS sensor, aspect ratio 3:2 |
| Number of gross pixels | Approx. 21.0 Megapixels |
| Number of effective pixels | Approx. 20.1 Megapixels |

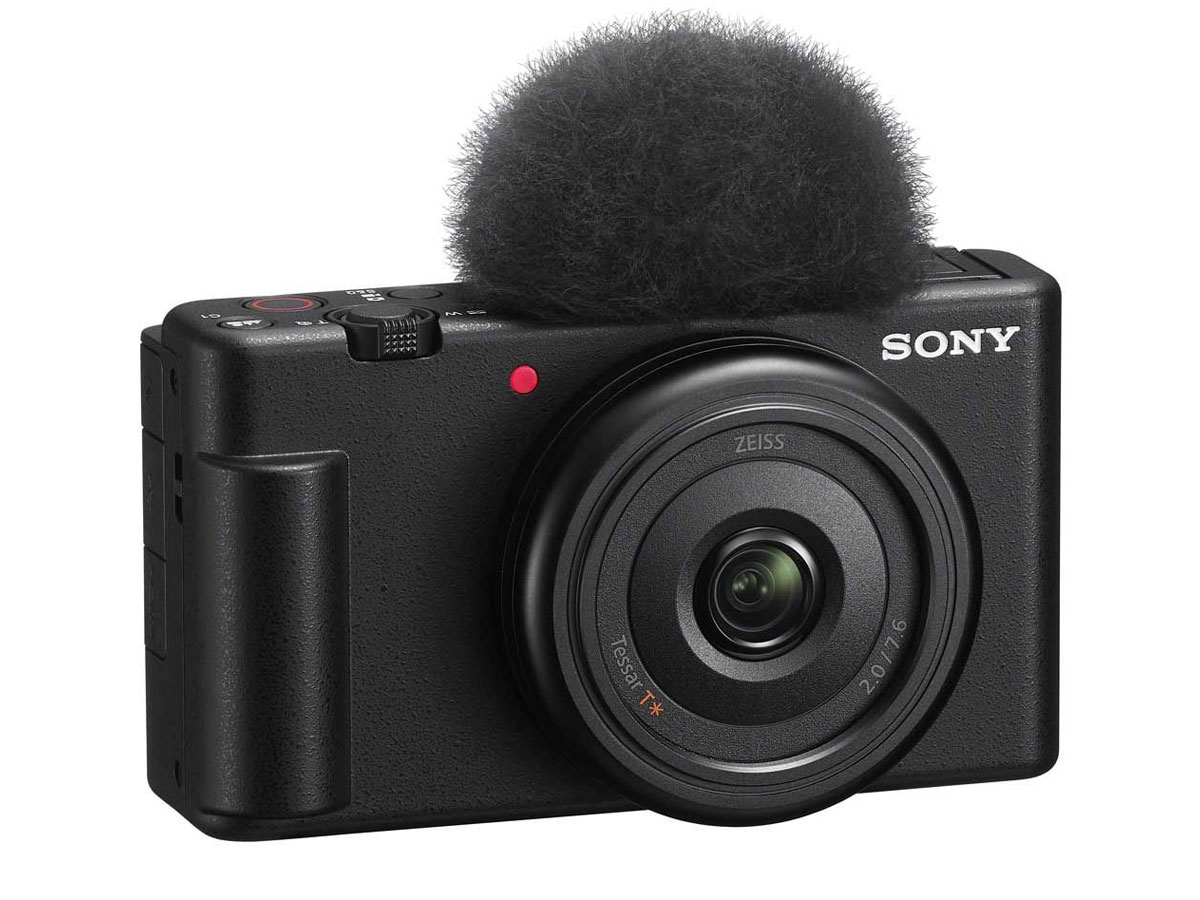

| Lens |
|---|
| Lens Type | ZEISS Tessar T* Lens, 6 elements in 6 groups |
| F-number (Maximum Aperture) | F2.0 |
| Iris Diaphragm | 7 blades |
| ND Filter | - |
| Focal Length (f = ) | f=7.6mm |
| Angle of View (35mm format equivalent) (Still Image)*1 | 94°(20mm) |
| Focus Range (from the front of the lens) | Approx. 5cm (0.17 ft.) to Infinity |
| Lens |
|---|
| Optical Zoom | Still Image, Movie | - |
| Clear Image Zoom*2 | Still Image | 20M Approx. 2x / 10M Approx. 2.8x / 5.0M Approx. 4x |
| Movie | 4K: 1.5x
HD: Approx. 2x |
| Digital Zoom*2 | Still Image | 20M Approx.4x / 10M Approx.5.6x / 5.0M Approx.8x |
| Approx.4x |

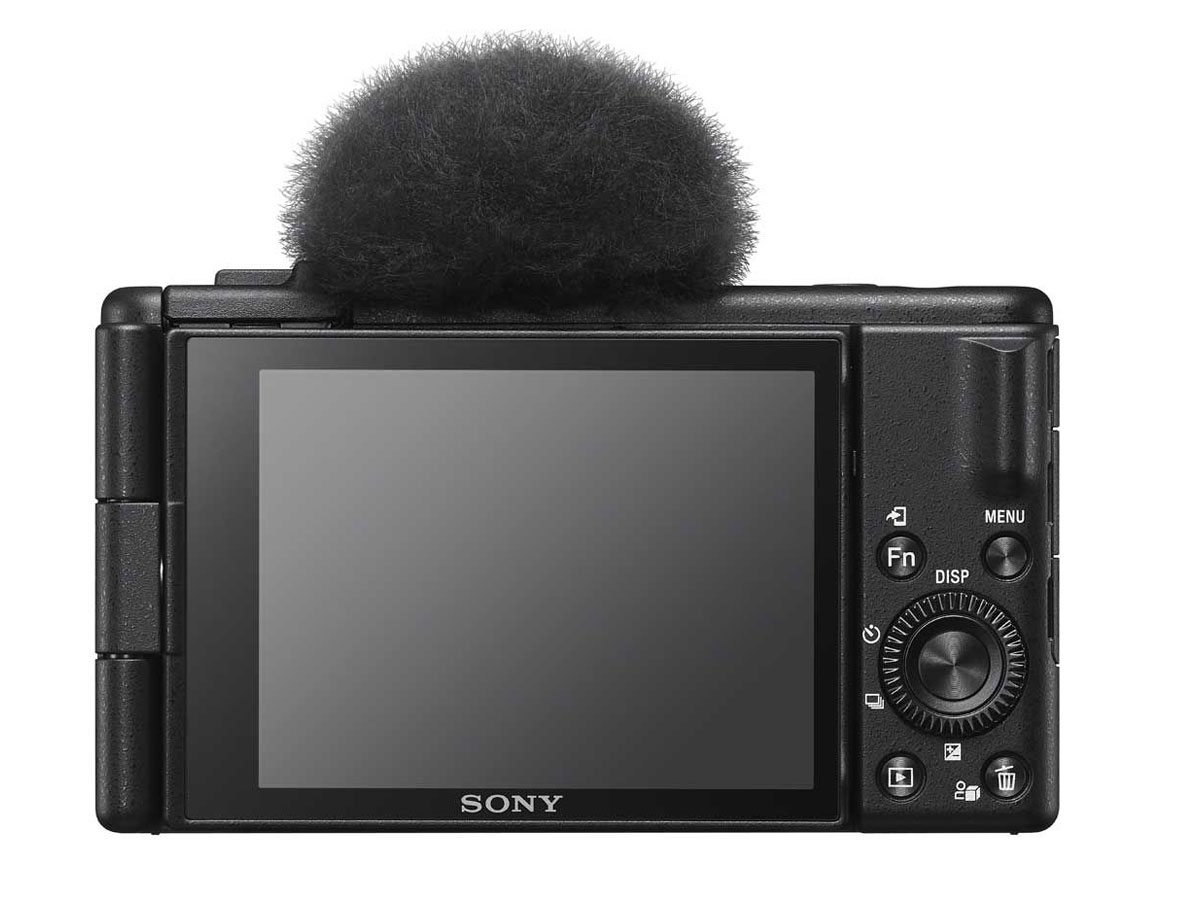

| Screen |
|---|
| Screen Type | 7.5cm(3.0type)(4:3) / 921,600 dots / Xtra Fine / TFT LCD |
| Touch Panel | Yes |
| Brightness control | Manual(5 steps) / Sunny Weather |

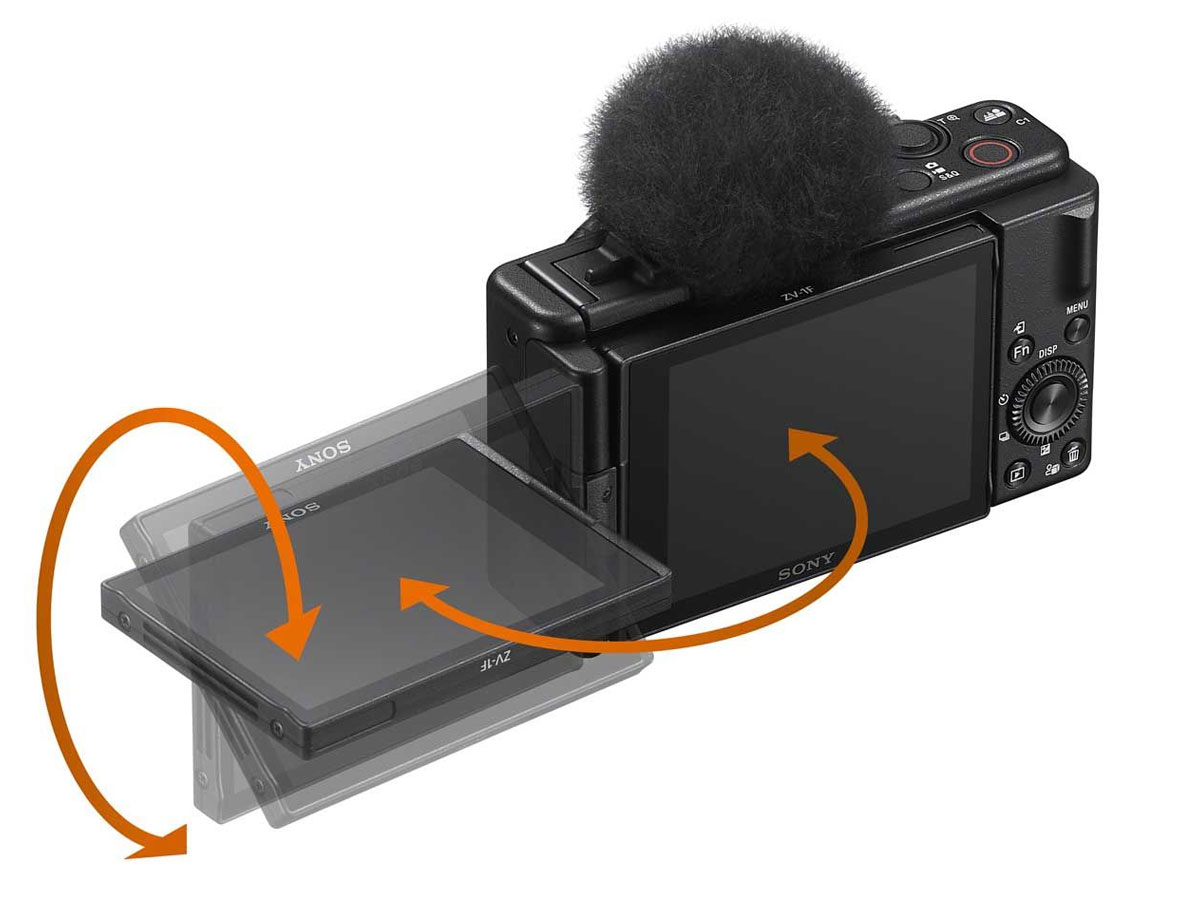

| Adjustable angle | Opening Angle:approx. 176 deg., Rotation Angle:approx. 270 deg. |
| Veiwfinder |
|---|
| Screen Type/Number of dots | - |
| Camera |
|---|
| Imaging Processor BIONZ | Yes (BIONZ X) |
| SteadyShot | Electronic |
| Focus Mode | Single-shot AF
Continuous AF
Manual Focus |
| Focus Area | Wide (425 points(contrast-detection AF))
Zone
Center
Flexible Spot (S/M/L)
Expanded Flexible Spot |
| Object Tracking | Yes (Tracking) |
| Eye AF | [Still images] Human (Right/Left Eye Select) / Animal;
[Movie] Human |
| Light Metering Mode | Multi Pattern
Center Weighted
Spot
Entire Screen Avg
Highlight |
| Exposure Compensation | +/- 3.0EV, 1/3EV step |
| Exposure Control | Yes |
| ISO Sensitivity (Still Image)*3 | Auto(ISO125-6400),125/160/200/250/320/400/500/640/800/1000/1250/1600/2000/2500/3200/4000/5000/6400/8000/10000/12800 (Extendable to ISO80/100) |
| ISO Sensitivity (Movie) | Auto:(ISO125Level-ISO6400Level), 125/160/200/250/320/400/500/640/800/1000/1250/1600/2000/2500/3200/4000/5000/6400/8000/10000/12800 |
| White Balance Mode | Auto
Daylight
Shade
Cloudy
Incandescent
Fluor.: Warm White
Fluor.: Cool White
Fluor.: Day White
Fluor.: Daylight
Underwater Auto
C.Temp./Filter
Custom |
| WB micro adjustment | Yes |
| Electronic Shutter | Program Auto(1/4" - 1/32000) / Manual(1/4" - 1/32000) / Aperture Priority(1/4" - 1/32000) / Shutter Priority(1/4" - 1/32000) |
| Aperture | Program Auto(F2/F8) / Manual(F2/F8) / Shutter Priority(F2/F8) / Aperture Priority(F2/F8) |
| Image Control | Contrast
Saturation
Sharpness
Creative look
Color Space
Quality(JPEG ( Extra fine, Fine, Standard) |
| Noise reduction | high ISO NR:Normal/Low/Off |
| Dynamic Range Functions | Off, Dynamic Range Optimizer (Auto/Level 1-5) |
| Shooting Mode | Auto(Intelligent Auto)
Program Auto
Aperture Priority
Shutter Speed Priority
Manual Exposure
Movie Mode(Program Auto, Aperture Priority, Shutter Speed Priority, Manual Exposure, Movie Auto(Intelligent Auto))
S&Q Mode(Program Auto, Aperture Priority, Shutter Speed Priority,Manual Exposure, S&Q Auto(Intelligent Auto)) |
| Continuous Shooting Speed (maximum) (with max. recording pixels)*4 *5 *6 | Speed Priority Continuous Shooting: approx. 16 fps, Continuous Shooting: approx. 3.5 fps *7 |
| Self-Timer | 10sec. / 5sec. / 2sec. /self timer(movie) |
| Drive modes | Single
Continuous shooting
Self-timer |
| Interval Rec | Yes (1-60 sec. interval, 1-9999 shots, AE lock/AE tracking(High/Mid/Low)) *8 |
| Panorama | - |
| Photo Creativity | - |
| Picture Profile | off/PP1-PP10(Black Level, Gamma(Movie, Still, Cine1-2, ITU709, ITU709 [800%], S-Log2, S-Log3, HLG, HLG1, HLG2, HLG3), Black Gamma, Knee, Color Mode, Saturation, Color Phase, Color Depth, Detail, Copy, Reset) |
| Recording |
|---|
| Compatible Recording Media*9 | [XAVC S(100Mbps)] SDXC/SDHC Memory Card (UHS-I U3 or higher); [XAVC S(60Mbps/50Mbps)] SDXC/SDHC Memory Card (Class 10 or higher); [Still image] Memory Stick Duo, Memory Stick PRO Duo, Memory Stick PRO-HG Duo, Memory Stick Micro*10 , Memory Stick Micro(Mark2)*10 , SDXC/SDHC/SD Memory Card (Class 4 or higher), micro SDXC/SDHC/SD Memory Card (Class 4 or higher)*10 |
| Recording Format(Still Image) | JPEG(DCF Ver.2.0,Exif Ver.2.32,MPF Baseline compliant) |
| Recording Format(Movie) | XAVC S |
| Recording Format(Movie Audio) | XAVC S:LPCM 2ch |
| Color Space (Still) | sRGB, Adobe RGB |
| DCF/DPOF | DCF/EXIF/MPF |
| Still Image Number of recorded pixels (Image Size) | 3:2mode:20M(5,472×3,648) / 10M(3,888×2,592) / 5M(2,736×1,824),4:3mode:18M(4,864×3,648) / 10M(3,648×2,736) / 5M(2,592×1,944) /16:9mode:17M(5,472×3,080) / 7.5M(3,648×2,056) / 4.2M(2,720×1,528),1:1mode:13M(3,648×3,648) / 6.5M(2,544×2,544) / 3.7M(1,920×1,920) |
| Movie Recording Mode | NTSC/PAL Selector: [PAL] mode XAVC S 4K: 25p 100M(3,840x2,160/25p) / 25p 60M(3,840x2,160/25p), XAVC S HD:50p 50M(1,920x1,080/50p) / 50p 25M(1,920x1,080/50p) / 25p 50M(1,920x1,080/25p) / 25p 16M(1,920x1,080/25p) / 100p 100M(1,920x1,080/100p) / 100p 60M(1,920x1,080/100p),
NTSC/PAL Selector: [NTSC] XAVC S 4K: 30p 100M(3,840x2,160/30p) / 30p 60M(3,840x2,160/30p) / 24p 100M(3,840x2,160/24p) / 24p 60M(3,840x2,160/24p), XAVC S HD:60p 50M(1,920x1,080/60p) / 60p 25M(1,920x1,080/60p) / 30p 50M(1,920x1,080/30p) / 30p 16M(1,920x1,080/30p) / 24p 50M(1,920x1,080/24p) / 120p 100M(1,920x1,080/120p) / 120p 60M(1,920x1,080/120p) |
| Slow & Quick Motion (S&Q) |
|---|
| Image frame rate | NTSC mode: 1fps, 2fps, 4fps, 8fps, 15fps, 30fps, 60fps, 120fps / PAL mode: 1fps, 2fps, 3fps, 6fps, 12fps, 25fps, 50fps, 100fps |
| Print |
|---|
| Exif Print | Yes |
| PRINT Image Matching (PIM3) | Yes |
| Interface |
|---|
| Input and Output Terminal | USB Terminal Type-C (USB2.0), Micro HDMI, Microphone jack (3.5mm Stereo mini jack) |
| NFC | - |
| Wi-Fi | Yes(IEEE802.11b/g/n(2.4GHz band)) |
| Eye-Fi | - |
| Bluetooth | Yes (Bluetooth Standard Ver. 4.1 (2.4GHz band)) |
| Power |
|---|
| Power Source | DC3.6V(supplied battery) |
| Battery System | Rechargeable battery pack NP-BX1 |
| Power Consumption (Camera mode) | Approx. 1.5W with LCD monitor (CIPA standard) |
| USB Charge/USB Power Supply | Yes (Shooting, Playback) |
| Power |
|---|
| Battery Life (CIPA) | Still Images*11 | Monitor:Approx. 360 / Approx. 180min., Monitor (When Auto Monitor off is set to 2sec):Approx. 540 / Approx. 270min., |
| Movies (actual shooting)*12 *13 | Monitor:Approx. 60min., *14 |
| Movies (continuous shooting)*12 | Monitor:Approx. 90min., *14 |
| Others |
|---|
| InCamera Guide | Yes |
| PlayMemories Camera Apps | - |
| Other Shooting Functions | Face Detection
Face Registration
Grid Line
Digital Level Gauge (pitch and roll)
Peaking (Display: Off/On) (Level: High/Mid/Low) (Color: Red/Yellow/Blue/White)
Zebra
Marker Display
Audio Rec Level
Audio Level Display
Step Zoom
PC Remote Control
Gamma Disp. Assist
Set File Name
Touch Shutter/Touch Focus/Touch Tracking
My Menu
Soft Skin Effect
Product Showcase Set
Background Defocus
Shot Mark (Movie) |
| Other Playback Function | BRAVIA Sync(Control for HDMI)
9/25-frame index view
Auto Orientation
Slide Show
Forward/Rewind (Movie)
Delete
Protect
Photo Capture
Rating |
| TRILUMINOS Color*15 | Yes |
| 4K image output | Yes |
| Operating Speed*16 | Start-up Time (Approx. 1.2 sec.) / Shooting Time Lag (Approx. 0.15 sec.) / Shooting Interval (Approx. 0.44 sec.) |
| Digital Level Gauge | Yes (Pitch and roll) |
| DIMENSIONS (W x H x D) (Approx.) | 105.5x60.0x46.4 mm
(4 1/4in. × 2 3/8 in. × 1 7/8 in.) |
| Weight (CIPA compliant) | Approx. 256g (9.1oz.)(Battery and Memory Card are included) / Approx. 229g (8.1oz.)(Body Only) |
| Supplied Accessory | Rechargeable Battery Pack (NP-BX1)
Type-C USB cable(USB2.0)
Wind Screen
Wind Screen Adaptor
Instruction Manual |
| Lens2 |
|---|
| Filter diameter | φ40.5 |
| Linear Focus | Yes |
| Scan System | Progressive scan |
| Color Filter | R,G,B primary color mosaic filters |
| Camera2 |
|---|
| Active Mode | Electronic |
| Focus | Focusing Type | Contrast-detection AF |
| Metering Sensitivity | Metering Sensitivity | EV 0 to 20 (at ISO100 equivalent) |
| ISO Sensitivity(REI) | Auto Controll Range | Auto(ISO125-6400),125/160/200/250/320/400/500/640/800/1000/1250/1600/2000/2500/3200/4000/5000/6400/8000/10000/12800 (Extendable to ISO80/100) |
| Face Detection | Mode | Face Priority inAF(On/Off), Face Priority in Multi Metering(On/Off), Regist. Faces Priority(On/Off) |
| Face Registration | New Registration / Order Exchanging / Delete / Delete All |
| Maximum number of detectable faces | 8 faces |
| Proxy Recording | Proxy Recording | Yes(1280 x 720(Approx.9Mbps)) |
| Program shift AE | Program shift AE | Yes |
| AE locked when focus is locked | AE locked when focus is locked | Yes |
| Flash | Bracketing | - |
| Flash Compensation | - |
| Flash Sync. Speed | - |
| Recycling Time | - |
| Control | - |
| External Flash | - |
| Flash Type | - |
| Red Eye Reduction | Red Eye Reduction | - |
| Auto Orientation | Auto Orientation | On only |
| Monitor, Viewfinder2 |
|---|
| MF Assist magnification | 1.6x,4.0x |
| Recording2 |
|---|
| Recording Format | Still Images: JPEG ( DCF, Exif, MPF Baseline ) compliant |
| Capacity on a memory card that tested and proven with cameras | Memory Stick Duo | 32GB |
| Memory Stick Micro | 16GB |
| SD Memory Card | 128GB |
| microSD Memory Card | 64GB |
| Microphone / Speaker |
|---|
| Built-in Microphone | Stereo |
| Speaker | Mono |
| Volume Setting | 16 steps |
| Wind noise reduction | Off / On |
| Playback2 |
|---|
| Single Image | Cue, Review (Movie) | Yes |
| Slow Playback (Movie) | Yes |
| Image Index | Index | 9 / 25 images |
| Display as Group | Display as Group | Yes |
| Slide Show | Video Out | 4K (HDMI) |
| Movie | Yes |
| Slide Show Settings | Image | All |
| Interval | 1 / 3 / 5 / 10 / 30 sec. |
| Repeat | On / Off |
| Zoom Magnification of Playback Mode | Depends on Image Size |
| Automatic Image Rotation | Yes |
| Auto Orientation(Auto pict rotation in response to camera position in playback) | Yes |
| Rotate | Yes |
| Delete | Single / Select / All but This Image / Folder / Date / Group |
| Protect | Select / Folder / Date / Group |
| Still image capture from movie | from 16:9Movie to Still Image Size | XAVC S 4K : 8.3M(3840×2160)
XAVC S HD : 2.1M(1920×1080) |
| PC Link2 |
|---|
| PlayMemories Home | - |
| Menu, Indicator |
|---|
| Function Guide | Histogram Indicator | Yes(On/Off) |
| Beep | Yes(On/Shutter/Off) |
| Interface2 |
|---|
| NFC | One-touch remote | - |
| One-touch sharing | - |
| Wi-Fi | Ctrl with Smartphone(Single) | Yes |
| Send to Smartphone | Yes (Select on This Device / Select on Smartphone) |
| Bluetooth | Location information Link from smartphone | Yes |
| Multi Interface Shoe | - |
| Print2 |
|---|
| Print Order Mark (DPOF) | - |
| Other Functions |
|---|
| Power Saving | 1min / 2min / 5min / 30min |
| Clock Function,Setting | Yes |
| Area Setting | Yes |
| Demo Mode | - |
| REC Lamp | Yes |
| NTSC/PAL switchover | Yes |
| Video Out |
|---|
| HDMI | 2D (Auto)*17 | Yes |
| HDMI Info. Display | Off/On |
| Video Out Mode | NTSC / PAL |
| USB |
|---|
| USB Connect | Mass Storage | Yes |
| MTP | Yes |
| LUN Settings (Multi/Single) | Multi / Single |
| Optional Accessory Capability |
|---|
| Tripod Receptacle | Yes |
| Power, Others |
|---|
| Supplied Battery | Maximum Voltage | 4.2V |
| Nominal Voltage | 3.6V |
| Capacity for Shooting | 4.5Wh(1240mAh) |
| AC Adaptor (supplied) | Power Requirements | - |
| Output voltage | - |
| Dimensions (WxHxD) | - |
| Mass | - |
| Body Material | Aluminium and plastic |
| Operating Temperature | 0 degrees C. - +40 degrees C. / 32 degrees F. - 104 degrees F. |
| Storage Temperature | -20 degrees C. - +55 degrees C. / -4 degrees F. - +131 degrees F. |
| Operating Speed |
|---|
| Shutter Release Time Lag | Approx. 0.007 sec. |
| Continuous Shooting Interval (minimum) | Continuous Shooting (Maximum number of recoded pixels)*18 *4 | Approx.0.06 sec *7 |
