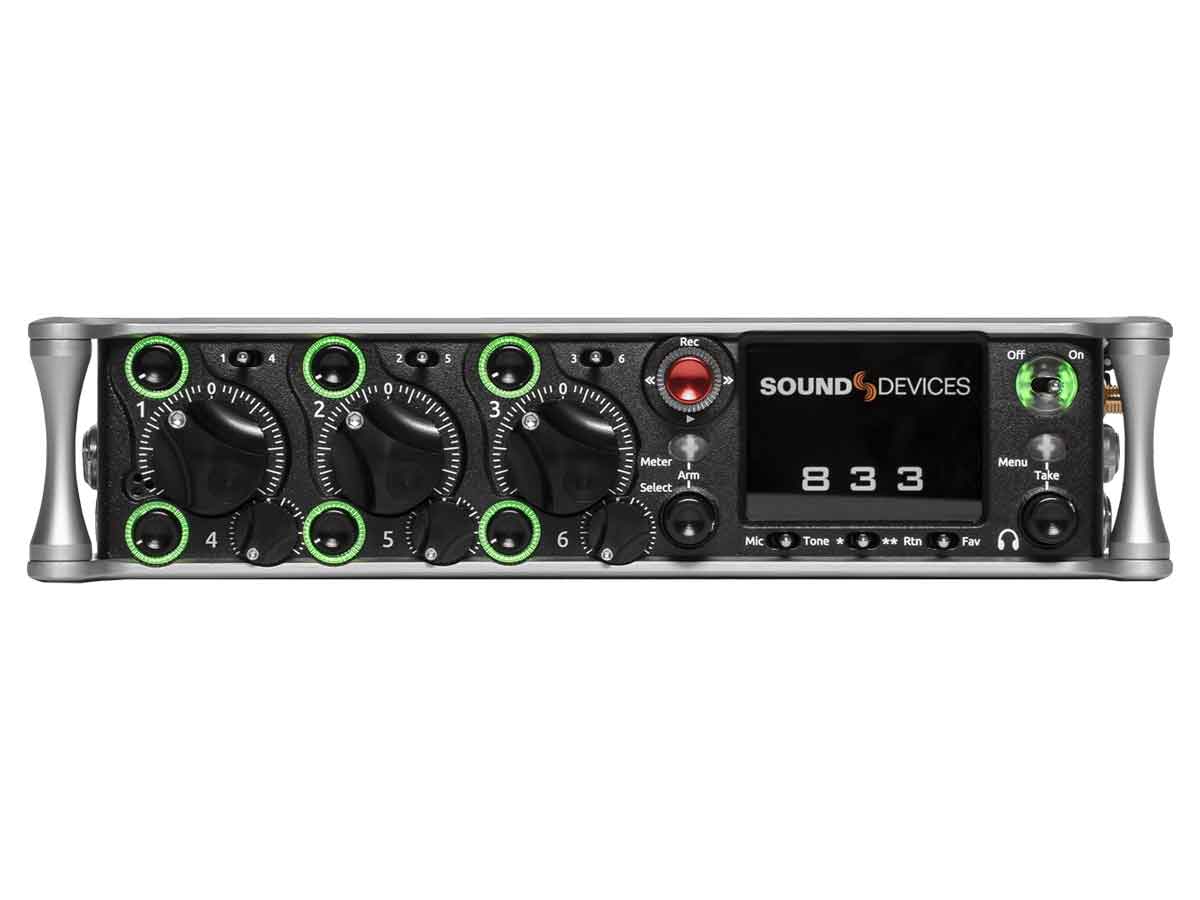

| Analogue Inputs |
| Frequency Response | 10 Hz to 80 kHz ± 0.5 dB (192 kHz sample rate, re 1 kHz) |
| THD + Noise | 0.005% max (mic in, 1 kHz, 22 Hz–22 kHz BW, trim at 20, fader at 0, -10 dBu in) |
| Equivalent Input Noise | -131 dBV (-129 dBu) max (mic in, A-weighting, 76 dB gain, 150 ohm source impedance) |
| |
| Processing Engine | Highly extensible, full FPGA-based audio processing, 3 FPGAs |
| | Six-way ARM multiprocessor system |
| | 64-bit audio processing precision |
| |
| Inputs |

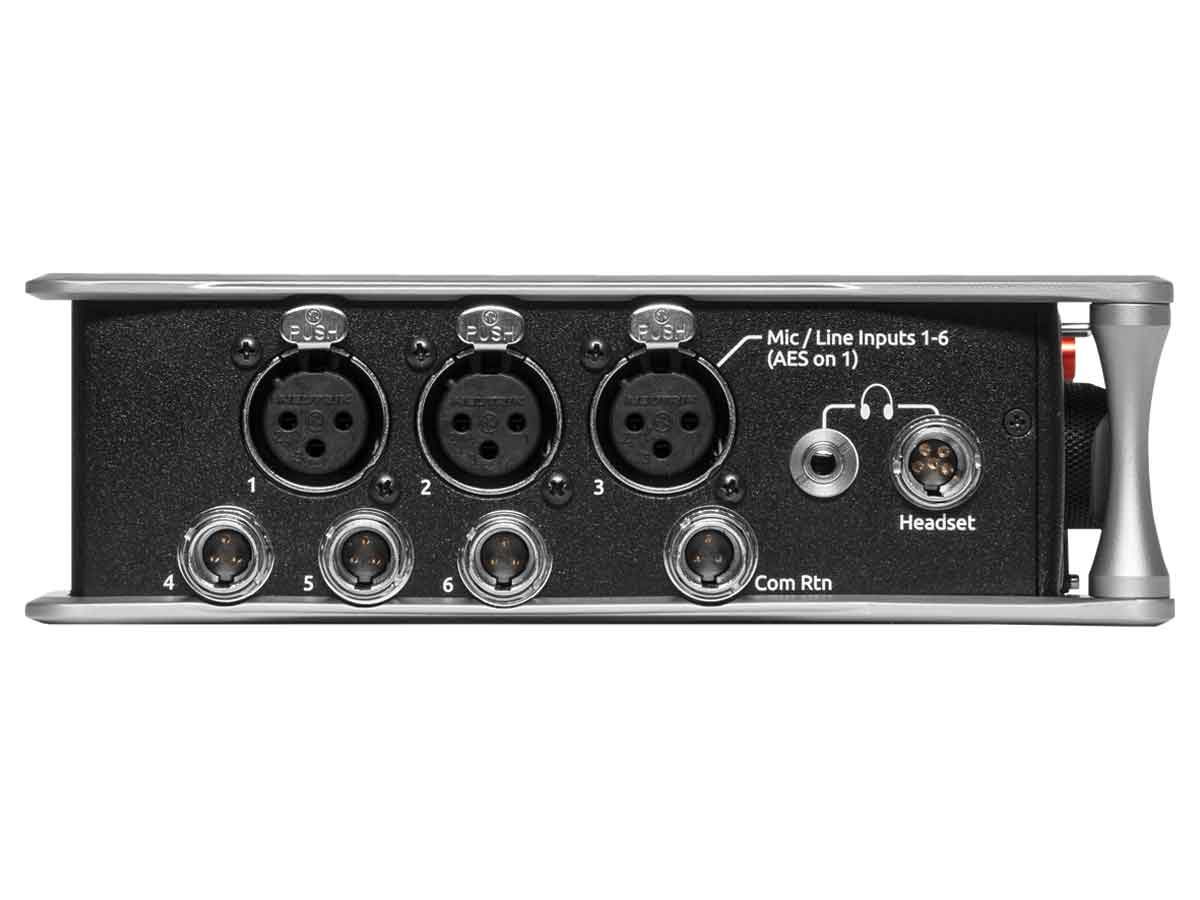

| Mic/Line inputs | 6 total, all fully featured; 3 on full-size XLR, 3 on TA3 |
| Inputs | Mic-level inputs: (XLR, TA3): Class-A, discrete differential long-tail pair, 4k ohm input impedance |
| Line-level inputs | (XLR, TA3,): active-balanced, 4k ohm input impedance |
| | 48V phantom: full 10mA to all 6 inputs simultaneously |
| | AES3 or AES42 available on XLR input 1 |
| | AES42: +10 V, 250 mA available, mode-1, auto-ASRC |
| | Aux (3.5 mm: unbalanced 2-channel, 4k ohm input impedance |
| | Com Rtn (TA3, 3.5mm) balanced, 1-channel, 8k ohm input impedance |
| | External Slate Mic (TA5): balanced, 8k ohm input impedance, menu-selectable 12 V phantom |
| Maximum Input Level | Mic: +8 dBu (2.0 Vrms) |
| | Line: +28 dBu (19.5 Vrms) |
| | Aux: +18 dBu (6.2 Vrms) |
| | Com Rtn: +24 dBu (12.3 Vrms) |
| | External Slate Mic: +12 dBu (3.2 Vrms) |
| |
| High-Pass Filters | Adjustable 10 Hz to 320 Hz, 18 dB/oct. 1st stage analog (before preamp), 2nd stage digital. |
| |
| Limiters | Limiters available at all channels, buses, headphones, for all sample rates |
| | Analog first stage, all subsequent stages digital |
| | Attack time: 1 ms |
| | Release time: adjustable, 50 ms to 1000 ms |
| | Threshold: adjustable, -2 dBFS to -12 dBFS |
| | Selectable ratio: inf:1, 20:1, 18:1, 16:1, 14:1, 12:1, 10:1 |
| |
| Delay | Channel Adjustable 0-50 ms |
| | Output Adjustable 0-500 ms |
| |
| Maximum Gain | Trim stage (mic input): 76 dB |
| | Trim stage (line input): 50 dB |
| | Fader stage: 16 dB |
| | Bus stage: 16 dB |
| | Headphone stage: 20 dB |
| | Mic-to-Line: 108 dB |
| | Mic-to-Headphone: 112 dB |
| | TA5 (along with mic input pins) for single connection to headset + |
| | mic High output, 4 ohm output impedance, 400 mW + 400 mW at |
| | each connector, all individually driven Compatible with headphones of any impedance |
| |

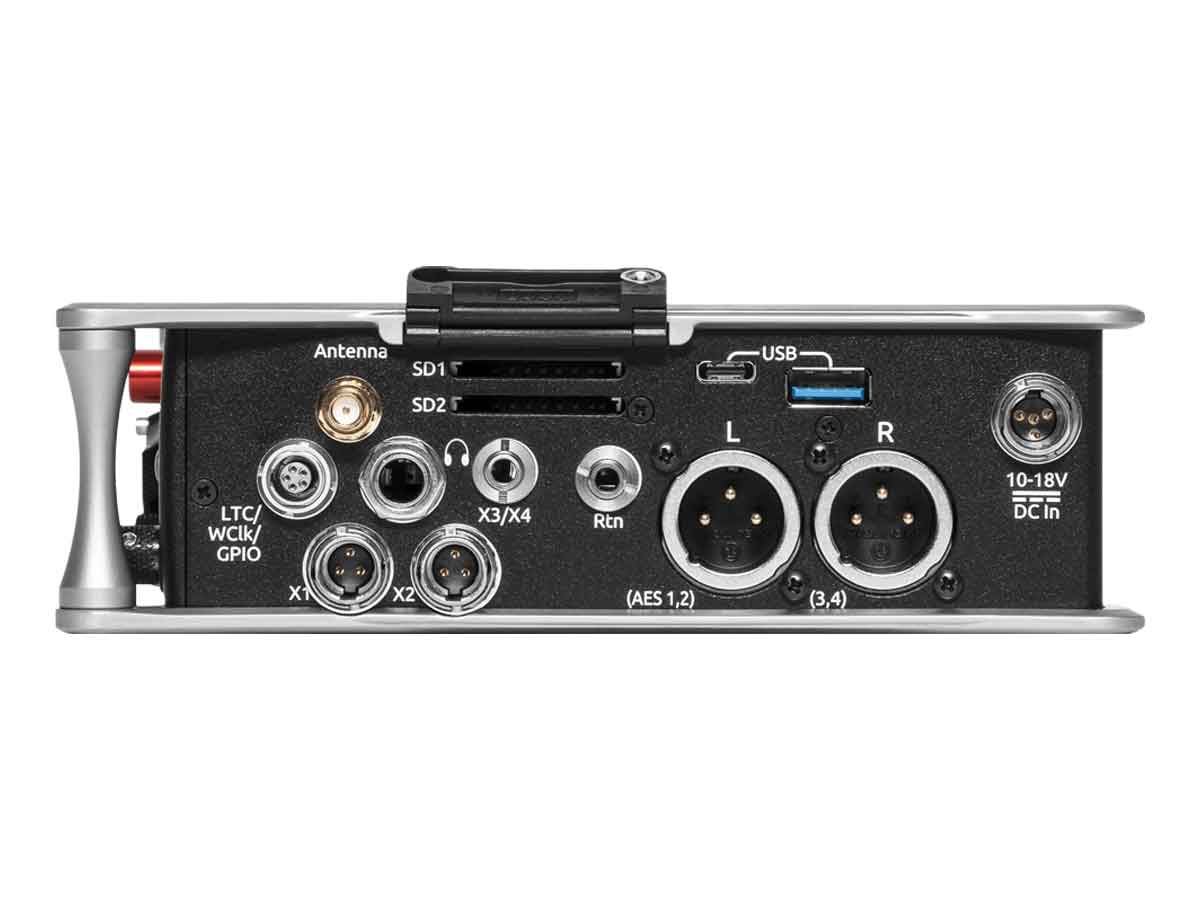

| Outputs | XLR (L, R) active-balanced, 250/3.2k/120 ohms (mic/-10/line) |
| | TA3 (X1/X2) active-balanced, 250/3.2k/120 ohms (mic/-10/line) |
| | 3.5mm (X3/X4): unbalanced, stereo, 1.8k ohms |
| Maximum Output Level (all into 10k load) | Line: +20 dBu (7.8 Vrms) |
| | “-10”: +6 dBu (1.5 Vrms) |
| | Mic: -20 dBu (0.078 Vrms) |
| | X3/X4 Out: +6 dBu (1.5 Vrms) |
| | Headphone outputs (¼”, TA-5): +14 dBu (4.0 Vrms) |
| Digital Outputs | AES3 transformer-balanced, in pairs; 1-2 (XLR-L), |
| | 3-4 (XLR-R), 110 ohm, 2 V p-p, AES and S/PDIF compatible |
| |
| Headphone Outputs | ¼”, 3.5 mm |
| | TA5 (along with mic input pins) for single connection to headset + mic |
| | High output, 4 ohm output impedance, 400 mW + 400 mW at each connector, all individually driven |
| | Compatible with headphones of any impedance |
| |
| Recording | A/D converters - 32-bit, 120 dB, A-weighted dynamic range typical |
| | A/D converters Sampling rates 44.1 kHz, 47.952 kHz, 48 kHz, 48.048 kHz, 88.2 kHz, 96 kHz, 192 kHz |
| Recording | Internal 256 GB SSD; two removable SD Cards, 10% over-provisioned for optimum performance |
| | Simultaneous recording to internal SSD and the two SD cards |
| | exFAT formatting |
| | 12 tracks (8 iso channels, 4 buses) |
| | Broadcast WAV monophonic and polyphonic file format |
| | 64-bit WAV (RF64) monophonic and polyphonic; support for files > 4 G |
| |
| Automatic Mixing | Dugan Automixer up to 8 channels on Left and Right Mix bus |
| |
| USB | USB-C (USB 3.1 type 1) for file transfer of internal SSD, both SD Cards. |
| | USB-A host for keyboard, external controller, external USB hubs supported for connecting multiple devices. |
| |
| Timecode and Sync | Modes Supported: Off, Rec Run, Free Run, 24h Run, External, |
| | including External Auto-Record and Continuous modes. |
| | Frame Rates: 23.98*, 24, 25, 29.97 DF, 29.97 ND, 30 DF, 30 ND |
| | Sample/Timecode Accuracy: 0.1 ppm (0.25 frames per 24 hours) |
| | Timecode Input: 20k ohm impedance, 0.3 V - 3.0 V p-p (–17 dBu - +3 dBu) |
| | Timecode Output: 75 ohm impedance, 5 V p-p (+12 dBu) |
| | Word Clock Input: 10k/75 ohm selectable impedance, 1-5 V p-p input sensitivity |
| | Word Clock Output: 75 ohm impedance, 5 V p-p output, at SR |
| |
| Remote Control | USB MIDI MCU Control - supported 3rd party fader controllers |
| | SD-Remote Android app |
| | USB Keyboard |
| | External Timecode Record Trigger |
| |
| LCD | 320x240, Transflective, excellent sunlight visibility |
| | Larger touchscreen display available via USB-connected SD-Remote app |
| |
| Power | External: 10-18 V input on locking TA4 connector, pin-4 = (+), pin-1 = (-) |
| | Dual rear-mount Sony-style L-mount batteries with chargers |
| | Idle Current Draw: 875 mA @ 12 V (10.5 W) |
| | Intelligent power-down of unused mic preamps and other internal circuits |
| |
| Environmental |
| Operating | -20° C to 60° C, 0 to 90% relative humidity (non-condensing) |
| Storage | -40° C to 85° C |
| |
| Dimensions (H x W x D) | 5.1 cm x 22 cm x 17 cm; |
| | (2.0 in. x 8.7 in. x 6. in) |
| |
| Weight | 2.75 lbs (unpackaged, without batteries) |
| | 1.25 kg (unpackaged, without batteries) |
