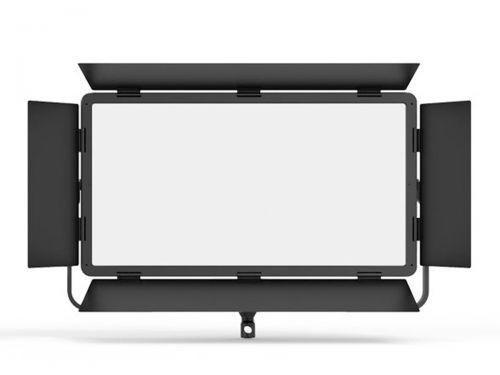

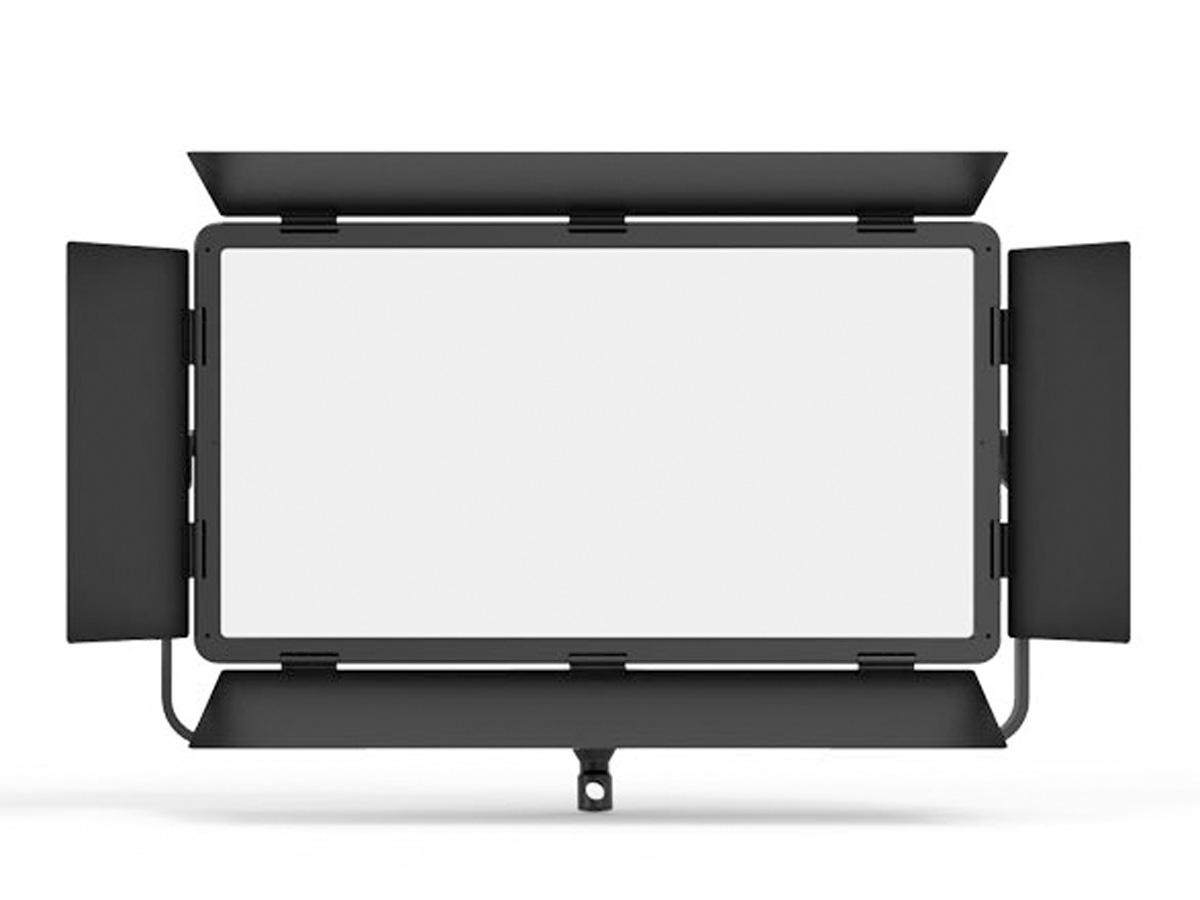

SMD LED Studio Light
Brighter, softer, wider beam angle
CL-120D is a 120W 2:1 Bi-color SMD LED panel light, with DMX control, high CRI/TLCI and accurate color performance, for broadcast studio, mobile studio, live streaming studio or interview kit applications.
1800pcs Surface Mounted LEDs
CL-120D adopts 1800pcs SMD LEDs, featured:
(1) higher uniformity of illuminance;
(2) wider beam angle;
(3) higher color rendering index;
(4) Softer and Brighter;
(5) longer life time,
which is an ideal light source for Broadcast studios, green keyer, interview kit, live streaming etc.
3700 Lux @ 1 meter
CL-120D outputs 120W power, feeds 3700Lux luminance at 1 meter distance (center), supports 0 to 100% PWM digital dimming, smoothly and non-flickering.
Wider Beam Angle
The SMD LEDs have wider beam angle comparing to the traditional DIP LED bulbs. It will generate an equally spread area light from center to edge, instead of a glaring light spot that suddenly declined from center to edge.
The wider angle equally spread light produces a nature light environment in studio.
Bi-color temperature
2700K-6500K continuously adjustable
CL-120D alternated with 2700K and 6500K LEDs, and can be continuously adjusted between 2700K and 6500K, 50K step.
Accurate Color Render
CRI 98; TLCI 99
CRI (Color Rendering Index) is a measure of the ability of a light source to reveal the colors of various objects faithfully in comparison with a natural light source. And TLCI (Television Lighting Consis- tency Index) is special for the color reveal ability by camera sensor. Max value 100.
The normal LED light has 80-85 CRI or TLCI, while CL-120D offers the super high CRI at 98 and TLCI at 99, and will not lose the object original colors.
DMX512 Control
5pin XLR in and out
DMX address: N= Dimmer; N+1= Color temp Provides a 5V USB power output socket. You can use SWIT LA-WR8 Pocket Wireless DMX controller and power the wireless DMX adaptor by the on board USB socket.
Press and hold dimmer knob for 2 seconds to enter DMX address setting from 001 to 512.

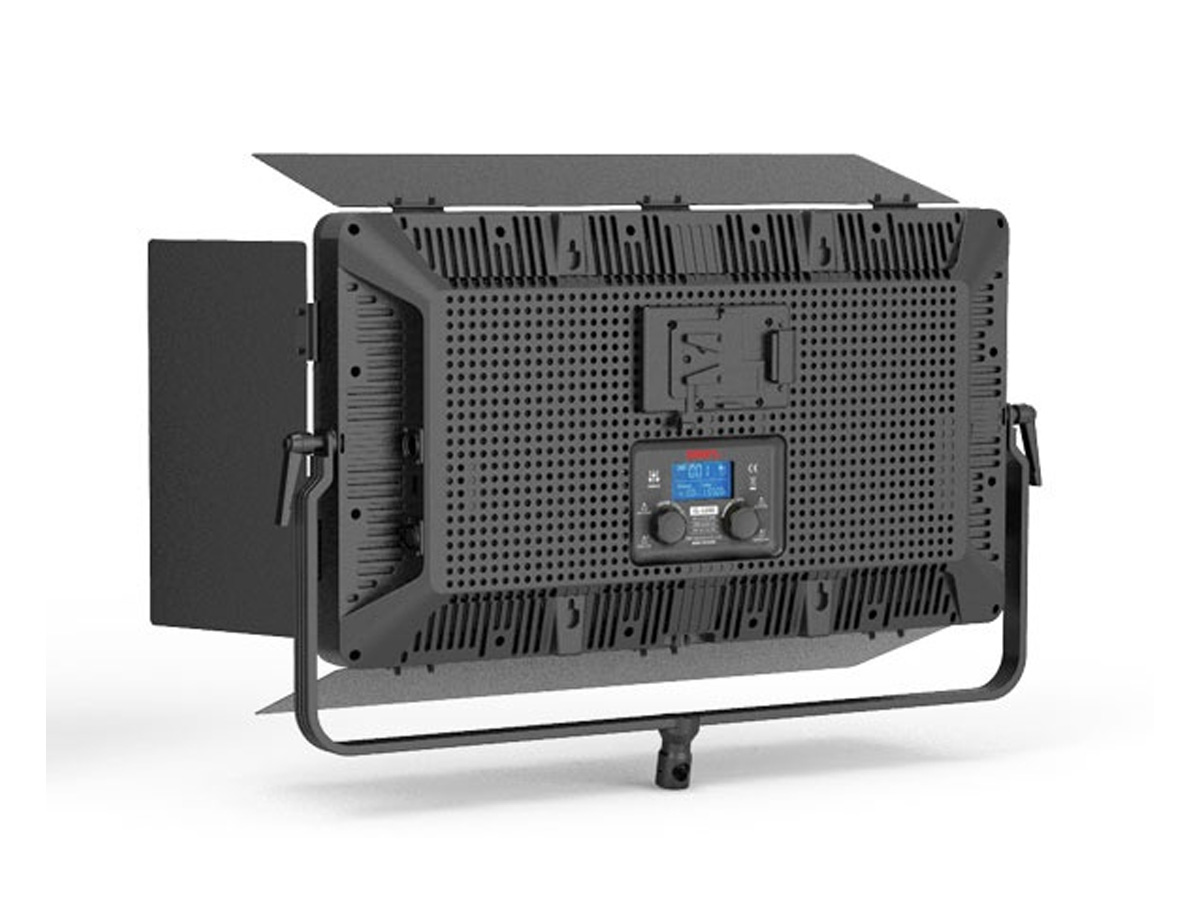

LCD screen display
Dimmer / color temp / DMX address
The rear LCD screen can display the current dimmer percentage, color temperature value, DMX channel and CH channel, and remaining battery indications.
DC 11-17V Power Supply
By V-mount battery or AC-DC adaptor
CL-120D supports 11-17V voltage input, with 4-pin XLR DC socket, and equipped with V-mount or Gold mount plate to power by batteries. (The default battery plate is V-mount.)
› 1800pcs ultra bright long-life LEDs
› SMD Surface mounted LED technology
› 65° wide beam angle, equally spread
› 2700K-6500K continuously adjustable
› 120W power, 3700Lux @ 1meter
› 0-100% flick-free dimming
› Super high CRI 98, TLCI 99
› DMX512 controlled color and dimmer
› LCD display color and dimmer value
› Power by V/Gold mount battery or AC adaptor
› 4-leaf metal barn doors and Yoke bracket
› Optional 45° honeycomb
