Z CAM EVF Electronic Viewfinder
Click to enlarge

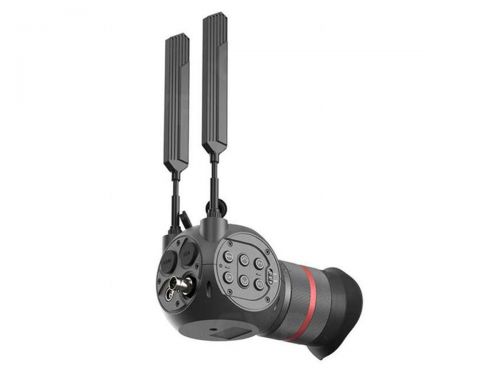

Z CAM EVF Electronic Viewfinder
SKU: ZC-EV101

£745.83 ex VAT
£895.00 inc VAT
https://www.productiongear.co.uk/z-cam-evf-electronic-viewfinder.htmlZC-EV1013
GBP895.00



click to check availability



  • Resolution: 1440x1440
  • Wireless HDR
  • Bulit in LUTs
  • Built in exposure tools
  • Adjustable diopter
  • HDMI / SDI input

EVF SPECIFICATIONS
Model:EV101
DISPLAY
Type:LCD
Resolution:1440 x 1440
Size:2.89"
DIOPTER
FOV:49.3°
Adjustable Range:-8 to +4
INTERFACE
HDMI Input:Video resolution up to UHD 30fps
SDI Input:Video resolution up to 1080p 60fps
USB (Type A):Load user defined LUTs
Mounting Option:Rosette (M6 female)
INPUT COLOUR DEPTH
Input Colour Depth:10-bit
BUILT IN TOOLS
Exposure Tools:Zebra, False color, Waveform, Histogram, Vectorscope, Frame line, Center mark, Safe area.
Other Tools:Focus peaking, magnifier
BUILT IN LUTS
Built In LUTs:Selectable LUTs & user defined LUTs
WIRELESS
Antenna:Dual antenna system
Wi-Fi Band:5GHz
HDR:Supported
POWER
Power Input:2-pin LEMO
Power Consumption:5.5W (maximum)
PHYSICAL
Dimensions:174.5 x 76.3 x 73.3mm (approximately)
Weight:612.6 gram (approximately)
