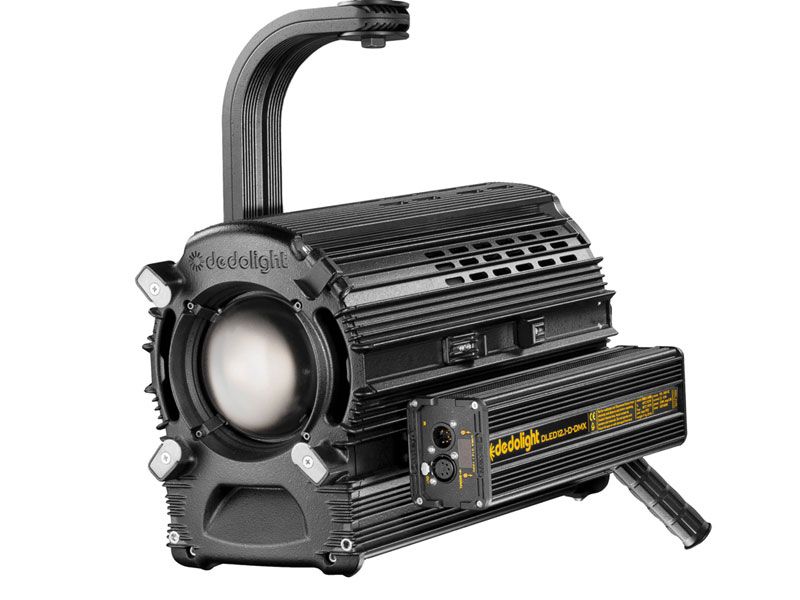

The DLED12 DMX is currently
the largest in our range of focusing
LED lights.
All our other DLED lights work with
passive cooling – no fan – no noise
The extreme power of this light is
compensated by a state of the art
cooling system.
Noise level of our cooling system
is distincly lower than with other
comparable lights.
dedolight aspherics2 optics provide
the expected huge focusing range,
clean beam and smooth light distribution.
Both daylight and tungsten
versions are available.
• Focus Range (Intensity Range) 65 - 8° (1:6)
• Optional aspheric wide - angle attachment: 85 - 54°
• Dimming Continously from 100 - 0 %
• DMX Contol
• Power 90 - 264 V AC, 240 VA / 2,4 - 1 A, 225 W
• Mounting 16 mm (5/8") receptacle and 28 mm (1 1/8") stud
• Operating Position +/- 90° (from horizontal)
• Tilt Control Adjustable friction
• Accessory Holder Ø 169 mm (6.6")
• Safety Protection Class I, IP40
• Active heat pipe cooling with super quiet fan system
• No UV radiation
• Weight 11,000 g ( 25 lb)
• Size W: 323,5 mm (12.73 "), L: 391,2 mm (15.40 "), H: 381 mm (15 "
